Name: Reach Cooling 42-10379 Radiator
SKU: 4210379
Price: 754.99 USD
Availability: InStock

REACH COOLING part description

Ford Acterra F Series F800 1970-2014

Make	Ford
Model	Acterra, F, F800
Year	1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014

Product Description

Radiator

Application Summary

1997 Ford LTS8000F; 1998 Ford L8501/ L8511; 00-03 Ford F650/ F750; 95/97-98 Ford F800; 95-98 Ford B800F; 97-98 Ford L8513/ LT8501/ LT8513

Features & Benefits

Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our fin edges are folded for increased stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Folded fin edges increase stability and heat disbursement properties.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

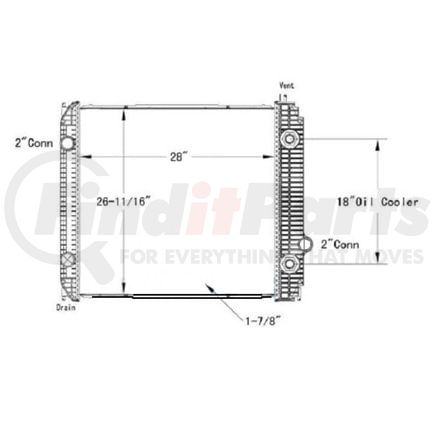

Product Attributes

Core Height	28 IN
Tank Material	Plastic PA66-GF30
Core Thickness	1.875 IN
Transmission Oil Cooler Type	18 In. Fan Side
Core Width	26.687 IN
Outlet Diameter	2 IN
Frame Included	No
Core Material	Aluminum
Transmission Oil Cooler Distance between Fittings	18 IN
Inlet Diameter	2 IN
Core Row Quantity	3
Down Flow Or Cross Flow Type	Cross Flow
Core Height	711.2 MM
Inlet Diameter	50.8 mm
Transmission Oil Cooler Distance between Fittings	457.2 MM
Core Thickness	47.63 MM
Outlet Diameter	51 MM
Core Height	711 MM
Engine Oil Cooler Included	No
Outlet Location	Bottom Right
Core Width	677.849 MM
Core Width	678 MM
Transmission Oil Cooler Included	Yes
Transmission Oil Cooler Distance between Fittings	457.20 MM
Inlet Diameter	51 MM
Radiator Cap Included	No
Outlet Diameter	50.8 MM
Core Thickness	47.625 MM
Inlet Location	Top Left

Additional Information

Country of Origin (Primary)	CN
Warranty Special	12 Months
UPC	06941099903961
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10379 Cross Reference

We have 167 alternatives for the 42-10379 by REACH COOLING:

Fits Vehicles

Ford F-800 (1995-1998)
Ford F-750 (2000-2003)
Ford F-650 (2000-2003)
Ford B-800F (1995-1998)
Ford FT900 (1995, 1997-1998)
Ford B800F (1995-1998)
Ford LT8513 (1997-1998)
Ford LT8501 (1997-1998)
Ford LTS8000F (1997)
Ford L8513 (1997-1998)
Ford L8511 (1998)
Ford L8501 (1998)
Ford F750 (2000-2003)
Ford F650 (2000-2003)
Ford F800 (1995-1998)
