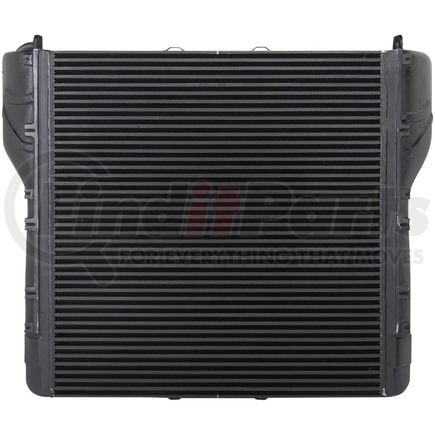

Name: Reach Cooling 61-1213 Charge Air Cooler
SKU: 611213
Price: 773.49 USD
Availability: InStock

REACH COOLING part description

Product Description

Charge Air Cooler

Application Summary

Kenworth:2008-2013 T660/ W900

Features & Benefits

Reinforced Aluminum Alloy: Header reinforced with aluminum bronze to increase strength by 50%.
7 Layer Packaging: Each charge air cooler is packaged in a heavy duty, 7 layer corrugated box to ensure best protection during transit.
Deep Extrusion Header: Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion.
Reach charge air coolers are built to withstand the pressures of long hauls. From the product design to the package it is shipped in, every consideration is taken to ensure longevity and peak performance.
Reinforcement Rib: Tubes feature a reinforcing rib to increase material strength.
Flat Tube Wall Thickness: Flat tube wall thickness is no less than .55mm to maximize ability to withstand added pressure.
Header Plate Bond: We use a wider angle header plate bond to eliminate the risk of header cracking.

Product Attributes

Inlet Location	Upper Left
Core Length	784.2 MM
Core Height	29 7/16 IN
Outlet Location	Upper Right
Core Thickness	2 7/16 IN
Inlet Outside Diameter	4 IN
Type	Harmonica-shaped tube
Outlet Outside Diameter	4 IN
Core Length	30 7/8 IN
Core Thickness	61.9 MM
Outlet Outside Diameter	101 MM
Core Height	747.7 MM
Inlet Outside Diameter	101 MM

Additional Information

Country of Origin (Primary)	CN
UPC	06949521751500

Part Interchanges

REACH COOLING 61-1213 Cross Reference

We have 55 alternatives for the 61-1213 by REACH COOLING:

Fits Vehicles

Kenworth T660 (2008-2013)
Kenworth W900 (2008-2013)
