Name: Reach Cooling 42-10374 FREIGHTLINER - STERLING AT9500 AT9513 LT9000
SKU: 4210374
Price: 696.49 USD
Availability: InStock

REACH COOLING part description

FREIGHTLINER / STERLING AT9500 AT9513 LT9000

Make	Freightliner, Sterling
Model	AT9500, AT9513, LT9000
Year	2004, 2005, 2006, 2007

Product Description

FREIGHTLINER - STERLING AT9500 AT9513 LT9000

Application Summary

FREIGHTLINER - STERLING AT9500 AT9513 LT9000

Features & Benefits

Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Our fin edges are folded for increased stability and heat disbursement properties.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Folded fin edges increase stability and heat disbursement properties.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

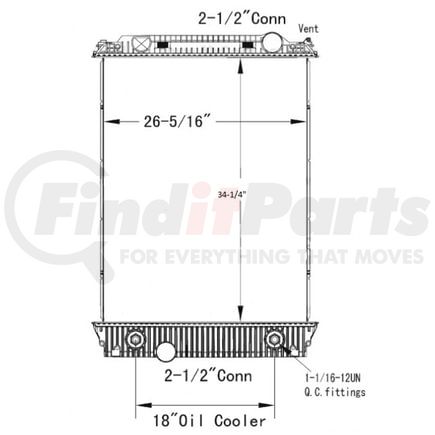

Product Attributes

Core Thickness	2 1/16 IN
Outlet Diameter	2.5 IN
Core Width	26.312 IN
Inlet Diameter	2 1/2 IN
Core Height	34.25 IN
Transmission Oil Cooler Distance between Fittings	18 IN
Core Height	870 MM
Frame Included	No
Inlet Diameter	63.5 mm
Transmission Oil Cooler Distance between Fittings	457.2 MM
Outlet Location	Lower Left
Inlet Location	Upper Right
Outlet Diameter	64 MM
Core Thickness	52.374 MM
Core Thickness	52.4 MM
Down Flow Or Cross Flow Type	Down Flow
Core Width	668.324 MM
Engine Oil Cooler Included	No
Core Height	869.95 MM
Outlet Diameter	63.5 MM
Core Width	668 MM
Transmission Oil Cooler Included	Yes
Inlet Diameter	63.5 MM
Radiator Cap Included	No
Fitting Connection Type	Quick connect
Transmission Oil Cooler Distance between Fittings	457.20 MM

Additional Information

Country of Origin (Primary)	CN
Warranty Special	12 Months
UPC	06949521718329
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10374 Cross Reference

We have 86 alternatives for the 42-10374 by REACH COOLING:

Fits Vehicles

Sterling Truck AT9500 (2004-2007)
