Name: Reach Cooling 42-10586 PETERBILT 387 14.6 L6 2000-2005. 4 ROWS
SKU: 4210586
Price: 993.99 USD
Availability: InStock

REACH COOLING part description

Includes	One (1) Radiator

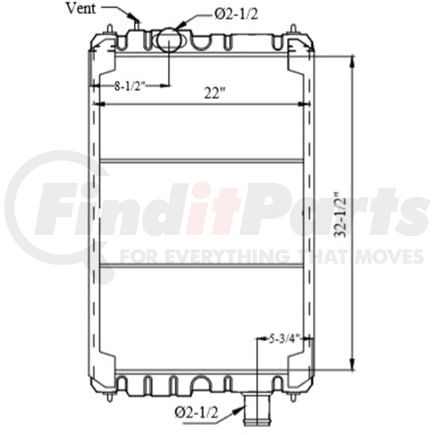

Core Dimensions	23 1/8" x 32 1/4"
Package Dimensions (Oversized)	43" x 10" x 31"

Application Summary: (2002-95) Peterbilt 330, (2005-00) Peterbilt 387

Make	Peterbilt
Model	387 14.6 L6

Product Description

PETERBILT 387 14.6 L6 2000-2005. 4 ROWS

Application Summary

PETERBILT 387 14.6 L6 2000-2005. 4 ROWS

Features & Benefits

Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Folded fin edges increase stability and heat disbursement properties.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Our fin edges are folded for increased stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Tank Material	Plastic
Down Flow Or Cross Flow Type	Dwon Flow
Core Width	22.625 IN
Core Row Quantity	4
Frame Included	No
Inlet Diameter	2 1/2 IN
Core Height	32 3/8 IN
Core Material	Aluminum
Outlet Diameter	2 1/2 IN
Core Thickness	2 1/8 IN
Core Height	822.325 MM
Inlet Location	Center Top
Core Width	574.675 MM
Inlet Diameter	63.5 mm
Outlet Location	Bottom Right
Core Thickness	54 MM
Transmission Oil Cooler Included	No
Inlet Diameter	63.5 MM
Core Height	822.3 MM
Engine Oil Cooler Included	No
Core Thickness	53.975 MM
Outlet Diameter	63.5 MM
Radiator Cap Included	No
Core Width	574. MM
Outlet Diameter	63.5 MM

Additional Information

Warranty Special	12 Months
Country of Origin (Primary)	CN
UPC	06941278988277
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10586 Cross Reference

We have 78 alternatives for the 42-10586 by REACH COOLING:

Fits Vehicles

Peterbilt 385 (2005-2006)
Peterbilt 330 (1995-2002)
Peterbilt 379 (2001)
Peterbilt 387 (2000-2005)
