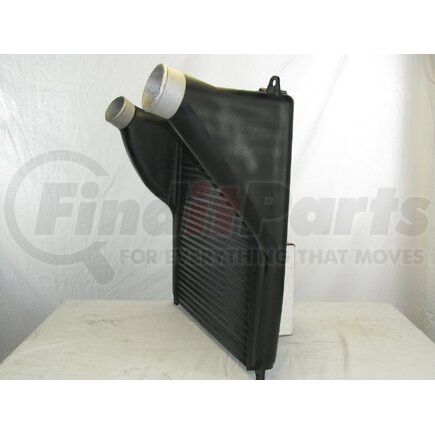

Name: Reach Cooling 61-1016 Charge Air Cooler
SKU: 611016
Price: 744.49 USD
Availability: InStock

REACH COOLING part description

Product Description

Charge Air Cooler

Application Summary

Kenworth:90 K100E/99-2006 T2000/96-2005 T300/89-96 T400/89-2007 T600A/87-2010 T800/82-2007 W900

Features & Benefits

Reinforced Aluminum Alloy: Header reinforced with aluminum bronze to increase strength by 50%.
Deep Extrusion Header: Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion.
Reach charge air coolers are built to withstand the pressures of long hauls. From the product design to the package it is shipped in, every consideration is taken to ensure longevity and peak performance.
Reinforcement Rib: Tubes feature a reinforcing rib to increase material strength.
Header Plate Bond: We use a wider angle header plate bond to eliminate the risk of header cracking.
7 Layer Packaging: Each charge air cooler is packaged in a heavy duty, 7 layer corrugated box to ensure best protection during transit.
Flat Tube Wall Thickness: Flat tube wall thickness is no less than .55mm to maximize ability to withstand added pressure.

Product Attributes

Inlet Header Length	27 1/4 in
Outlet Header Width	2 9/16 in
Inlet Outside Diameter	100 MM
Core Height	28.562 IN
Outlet Header Length	27 1/4 in
Inlet Location	Upper Left
Inlet Header Width	65.1 mm
Core Length	686.5 MM
Core Row Quantity	1
Core Thickness	2 3/16 IN
Outlet Outside Diameter	103 MM
Outlet Location	Upper Right
Inlet Header Length	692.2 mm
Outlet Header Length	692 mm
Core Height	725 MM
Outlet Header Width	65 mm
Inlet Outside Diameter	3 15/16 IN
Core Material	Aluminum
Outlet Outside Diameter	4.062 IN
Inlet Header Width	2 9/16 in
Type	Harmonica-shaped tube
Core Thickness	55.6 MM
Core Length	27 IN

Additional Information

Country of Origin (Primary)	CN
UPC	06949521756079

Part Interchanges

REACH COOLING 61-1016 Cross Reference

We have 152 alternatives for the 61-1016 by REACH COOLING:

Fits Vehicles

Kenworth K100E (1990)
Kenworth T400 (1989-1990, 1993-1996)
Kenworth W900 (1982, 1984, 1986, 1989-2007)
Kenworth T800 (1987-2010)
Kenworth T600A (1989-2007)
Kenworth T2000 (1999, 2002, 2005-2006)
Kenworth T300 (1996, 1998-2005)
