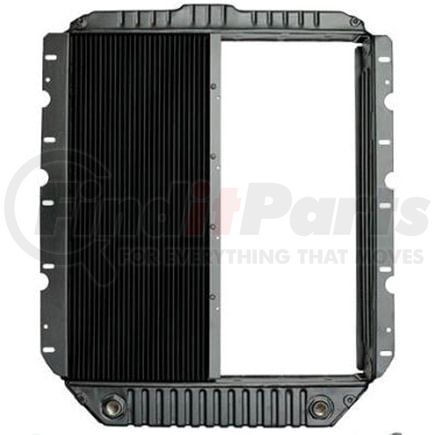

Name: Reach Cooling 42-10580 Radiator
SKU: 4210580
Price: 926.99 USD
Availability: InStock

REACH COOLING part description

INTERNATIONAL 3800 7.6 L6 1995-2004, W/T OIL COOLER ON GRILL SIDE

Make	International
Model	3800 7.6 L6

Product Description

Radiator

Application Summary

1984 International 1955; 1997 / 2000-2002 International 1652SC; 2001-2002 International 3000IC; 1997-2002 International 3400; 1995 International 3600 / 3800; 1997-2004 International 3800; 1996-2002 International 4700; 2000 International 4700LP; 1995 / 1998 / 2000-2002 International 4700LPX

Features & Benefits

Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Folded fin edges increase stability and heat disbursement properties.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our fin edges are folded for increased stability and heat disbursement properties.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Core Material	Copper
Core Row Quantity	2
Frame Included	No
Down Flow Or Cross Flow Type	Down Flow
Tank Material	Brass
Core Thickness	2.25 IN
Core Height	30 3/8 IN
Outlet Diameter	2 1/2 IN
Core Width	26 IN
Transmission Oil Cooler Type	19 In. Grill Side
Transmission Oil Cooler Distance between Fittings	19 IN
Inlet Diameter	2 1/2 IN
Outlet Diameter	63.5 MM
Transmission Oil Cooler Distance between Fittings	482.6 MM
Outlet Location	Bottom Left
Outlet Diameter	63.5 MM
Core Thickness	57.15 MM
Transmission Oil Cooler Distance between Fittings	482.60 MM
Inlet Location	Center Top
Engine Oil Cooler Included	No
Inlet Diameter	63.5 mm
Core Height	771.5 MM
Radiator Cap Included	No
Core Thickness	57.15 MM
Core Width	660.4 MM
Inlet Diameter	63.5 MM
Core Height	771.525 MM
Core Width	660 MM
Transmission Oil Cooler Included	Yes

Part Interchanges

REACH COOLING 42-10580 Cross Reference

We have 70 alternatives for the 42-10580 by REACH COOLING:

Fits Vehicles

International 1955 (1984)
International 4700LPX (1995, 1998, 2000-2002)
International 4700LP (2000)
International 4700 (1996-2002)
International 3800 (1995, 1997-2004)
International 3600 (1995)
International 3400 (1996-2002)
International 3000IC (2001-2002)
International 1652SC (1997-2002)

Founded in 1999, Reach Cooling® is a worldwide leader in the manufacture and distribution of aftermarket cooling products for light, medium, and heavy duty truck applications. Its fasting-growing division is within its medium and heavy duty truck part sector, offering more than 30 HD condensers, more than 50 HD charge air coolers, and more than 100 HD radiators. All these products are manufactured to meet the highest OE standards to fit some of the most popular US truck makes, including Peterbilt, Mack, International, Isuzu, GMC, Ford, and Freightliner. Headquartered in Miami, Florida, Reach Cooling is fully committed to providing customers with only the best products, most competitive prices, and exceptional service.
