Name: Reach Cooling 42-10348 2008-2015 Freightliner M2 106
SKU: 4210348
Price: 784.49 USD
Availability: InStock

REACH COOLING part description

2008-2015 Freightliner M2 106

Specifications

Height	34"
Width	30 5/8"
Thickness	1 7/8"
Row	2
Inlet	2"
Outlet	2"
Core Material	Aluminum
Tank Material	Aluminum

Make	Freightliner
Model	M2 106
Year	2008, 2009

Product Description

2008-2015 Freightliner M2 106

Application Summary

2008-2015 Freightliner M2 106

Features & Benefits

Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Folded fin edges increase stability and heat disbursement properties.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.

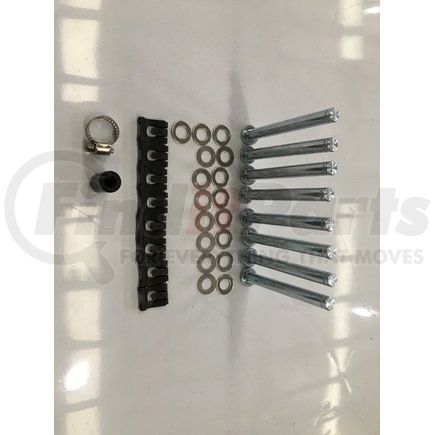

Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our fin edges are folded for increased stability and heat disbursement properties.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Core Thickness	1 7/8 IN
Tank Material	Plastic
Core Height	34 IN
Outlet Diameter	2 IN
Core Width	30.625 IN
Transmission Oil Cooler Type	18 In. Engine side
Inlet Diameter	2 IN
Transmission Oil Cooler Distance between Fittings	18 IN
Core Row Quantity	2
Down Flow Or Cross Flow Type	Down Flow
Core Material	Aluminum
Frame Included	No
Core Width	777.875 MM
Outlet Diameter	50.8 MM
Outlet Location	Lower Right
Fitting Connection Type	Quick connect
Core Height	864 MM
Transmission Oil Cooler Distance between Fittings	457 MM
Inlet Diameter	51 MM
Core Height	863.6 MM
Core Thickness	47.625 MM
Core Width	778 MM
Inlet Diameter	50.8 mm
Core Thickness	47.6 MM
Engine Oil Cooler Included	No
Transmission Oil Cooler Distance between Fittings	457.2 MM
Transmission Oil Cooler Included	Yes
Inlet Location	Upper Right
Outlet Diameter	51 MM
Radiator Cap Included	No

Additional Information

Country of Origin (Primary)	CN
Warranty Special	12 Months
UPC	06949521799137
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10348 Cross Reference

We have 104 alternatives for the 42-10348 by REACH COOLING:

Fits Vehicles

Freightliner Business Class M2 (2006-2012)
Freightliner M2 106 (2006-2015)
Sterling Truck Acterra (2008-2010)

Founded in 1999, Reach Cooling® is a worldwide leader in the manufacture and distribution of aftermarket cooling products for light, medium, and heavy duty truck applications. Its fasting-growing division is within its medium and heavy duty truck part sector, offering more than 30 HD condensers, more than 50 HD charge air coolers, and more than 100 HD radiators. All these products are manufactured to meet the highest OE standards to fit some of the most popular US truck makes, including Peterbilt, Mack, International, Isuzu, GMC, Ford, and Freightliner. Headquartered in Miami, Florida, Reach Cooling is fully committed to providing customers with only the best products, most competitive prices, and exceptional service.
