Name: Reach Cooling 42-10366 Freightliner FS65 05-08 Freightliner FS65 05-08
SKU: 4210366
Price: 684.99 USD
Availability: InStock

REACH COOLING part description

Core Material	Aluminum
Tank Material	Plastic
Thickness	1 8/9"
Row	2
Inlet	2"
Outlet	2"

Application Summary: Make/Model (2007-04): Freightliner FS65, M2 106; Sterling Truck- Acterra

Make	Freightliner
Model	F65
Year	2005, 2006, 2007, 2008

Product Description

Freightliner FS65 05-08 Freightliner FS65 05-08

Application Summary

Freightliner FS65 05-08 Freightliner FS65 05-08

Features & Benefits

Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Folded fin edges increase stability and heat disbursement properties.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Our fin edges are folded for increased stability and heat disbursement properties.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

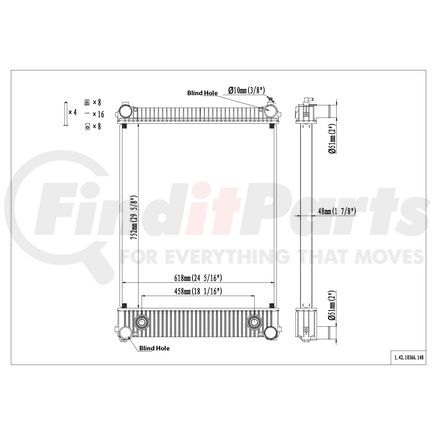

Product Attributes

Down Flow Or Cross Flow Type	Down Flow
Core Height	29 5/8 IN
Core Thickness	1.875 IN
Tank Material	Plastic
Inlet Diameter	2 IN
Transmission Oil Cooler Type	18 In. Engine side
Transmission Oil Cooler Distance between Fittings	18 1/16 IN
Core Row Quantity	2
Core Width	24 5/16 IN
Core Material	Aluminum
Outlet Diameter	2 IN
Frame Included	No
Outlet Diameter	51 MM
Inlet Diameter	51 MM
Core Thickness	48 MM
Transmission Oil Cooler Included	Yes
Radiator Cap Included	No
Core Height	752.5 MM
Transmission Oil Cooler Distance between Fittings	458.8 MM
Outlet Diameter	50.8 MM
Core Width	617.524 MM
Fitting Connection Type	Quick connect
Outlet Location	Lower Right
Inlet Diameter	50.8 mm
Core Width	617.5 MM
Core Height	752.475 MM
Core Thickness	47.625 MM
Transmission Oil Cooler Distance between Fittings	458.774 MM
Inlet Location	Upper Left
Engine Oil Cooler Included	No

Additional Information

Country of Origin (Primary)	CN
Warranty Special	12 Months
UPC	06949521755553
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10366 Cross Reference

We have 77 alternatives for the 42-10366 by REACH COOLING:

Fits Vehicles

Freightliner B2 (2005-2008)
Freightliner Business Class M2 (2004-2009)
Freightliner FS65 (2005-2008)
Freightliner M2 106 (2003-2008)
Sterling Truck Acterra (2005-2007)
Sterling Truck Acterra 7500 (2005-2007)
Sterling Truck Acterra 6500 (2005-2007)
Sterling Truck Acterra 5500 (2005-2007)
