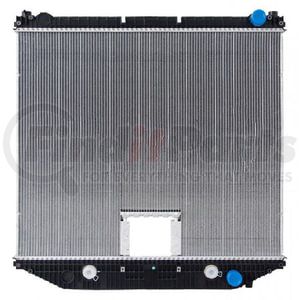

Name: Reach Cooling 42-10229 FORD F-B SERIES F800-F900-F600 GAS ENGINE
SKU: 4210229
Price: 822.49 USD
Availability: InStock

REACH COOLING part description

FORD F&B SERIES F800,F900,F600 GAS ENGINE

Specifications

Height	26 1/2 (Inches)
Width	27 1/2"
Thickness	1 7/8 (Inches)
Row	2
Inlet	2"
Outlet	2"
Core Material	Aluminum
Tank Material	Plastic
TOC	NONE (Inches)
EOC	NONE (Inches)

Features & Benefits

Designed specifically for Ford F-B Series F800, F900, and F600 gas engine models
Constructed with a robust aluminum core material, ensuring excellent heat dissipation and durability
Features plastic tank material that combines strength with lightweight properties for easier installation
Engineered to provide reliable performance and longevity in a variety of operating conditions
Equipped to handle heavy-duty applications with an integrated design boosting overall efficiency

Make	Ford
Model	B500-B800, F600-F800
Year	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

Product Description

FORD F-B SERIES F800-F900-F600 GAS ENGINE

Application Summary

FORD F-B SERIES F800-F900-F600 GAS ENGINE

Features & Benefits

Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Our fin edges are folded for increased stability and heat disbursement properties.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Folded fin edges increase stability and heat disbursement properties.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Designed specifically for Ford F-B Series F800, F900, and F600 gas engine models
Constructed with a robust aluminum core material, ensuring excellent heat dissipation and durability
Features plastic tank material that combines strength with lightweight properties for easier installation
Engineered to provide reliable performance and longevity in a variety of operating conditions
Equipped to handle heavy-duty applications with an integrated design boosting overall efficiency

Reach Cooling Radiator

The Reach Cooling Radiator delivers exceptional engine cooling performance for various Ford F-Series trucks (F800-F900-F600) equipped with gasoline engines. It boasts a lightweight and efficient aluminum core that maximizes heat dissipation and promotes optimal engine operating temperatures. The aluminum construction offers superior thermal conductivity compared to traditional copper radiators, allowing for efficient heat transfer away from the engine block and into the atmosphere. This Reach Cooling part also features durable plastic tanks that resist corrosion, cracking, and warping commonly experienced with older metal tanks. These plastic tanks are designed to withstand the demanding vibrations and temperature fluctuations associated with heavy-duty truck operation. It's important to note that this radiator does not include a radiator cap, so it must be purchased separately. Overall, the Reach Cooling 42-10229 is a cost-effective and efficient solution for maintaining proper engine cooling in Ford F-Series gas trucks.

Product Attributes

Core Thickness	1 7/8 IN
Tank Material	Plastic
Outlet Diameter	2 IN
Core Height	26.5 IN
Core Material	Aluminum
Core Row Quantity	2
Core Width	27 1/2 IN
Inlet Diameter	2 IN
Outlet Header Width	71.4 MM
Inlet Header Length	726.5 MM
Outlet Header Length	726.5 MM
Transmission Oil Cooler Included	No
Inlet Header Width	71.4 MM
Engine Oil Cooler Included	No
Inlet Diameter	51 MM
Inlet Location	Upper Right
Radiator Cap Included	No
Inlet Diameter	50.8 mm
Inlet Header Width	71.424 mm
Inlet Header Length	28.625 IN
Outlet Header Width	2.812 IN
Outlet Header Width	71.424 mm
Core Height	673.1 MM
Core Thickness	47.625 MM
Inlet Header Width	2 13/16 IN
Inlet Header Length	727.075 mm
Core Thickness	47.6 MM
Outlet Location	Lower Left
Outlet Diameter	51 MM
Outlet Diameter	50.8 MM
Down Flow Or Cross Flow Type	Down Flow
Core Width	698.5 MM
Outlet Header Length	727.075 mm
Core Height	673 MM
Outlet Header Length	28.625 IN
Frame Included	No
Core Width	698.5 MM

Additional Information

Country of Origin (Primary)	CN
Warranty Special	12 Months
UPC	06949521787264
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10229 Cross Reference

We have 52 alternatives for the 42-10229 by REACH COOLING:

Fits Vehicles

Ford P-600 (1993-1994)
Ford F600 LPO (1990)
Ford F-600 LPO (1990, 1992-1994)
Ford F-800 (1990-1991, 1997)
Ford F-700 (1990-1998)
Ford F-600 (1990-1994)
