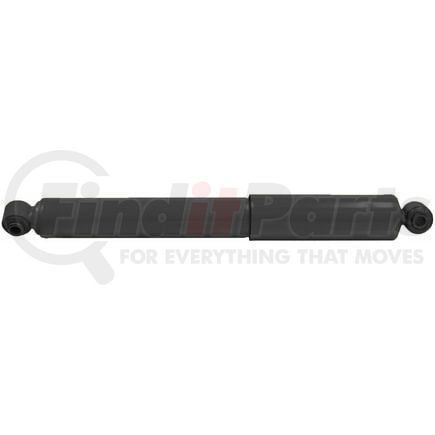

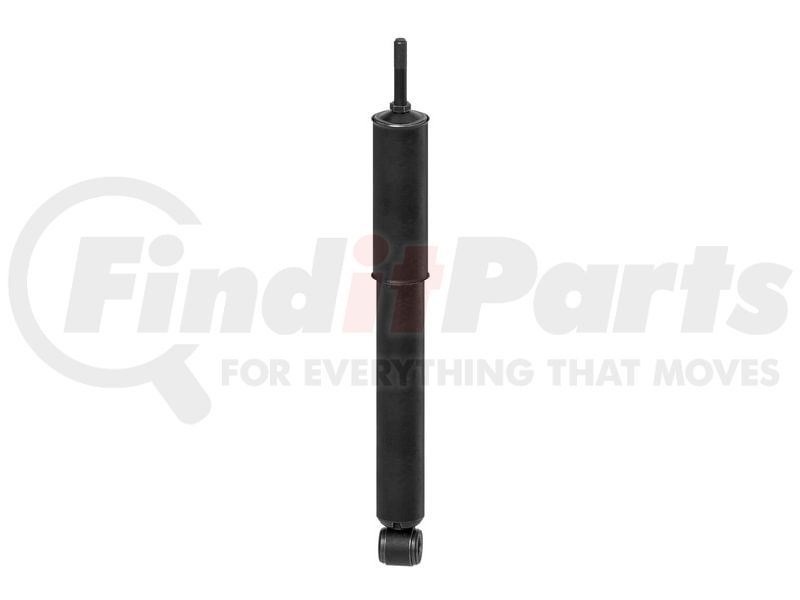

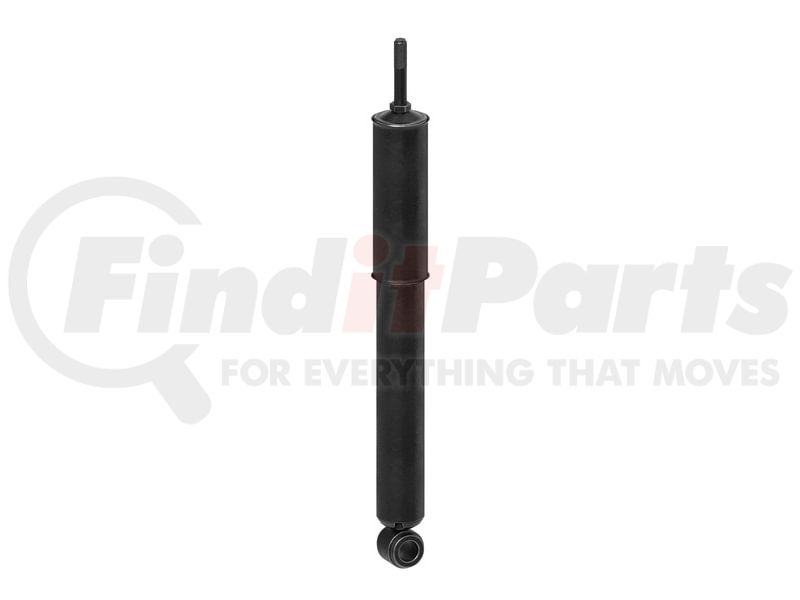

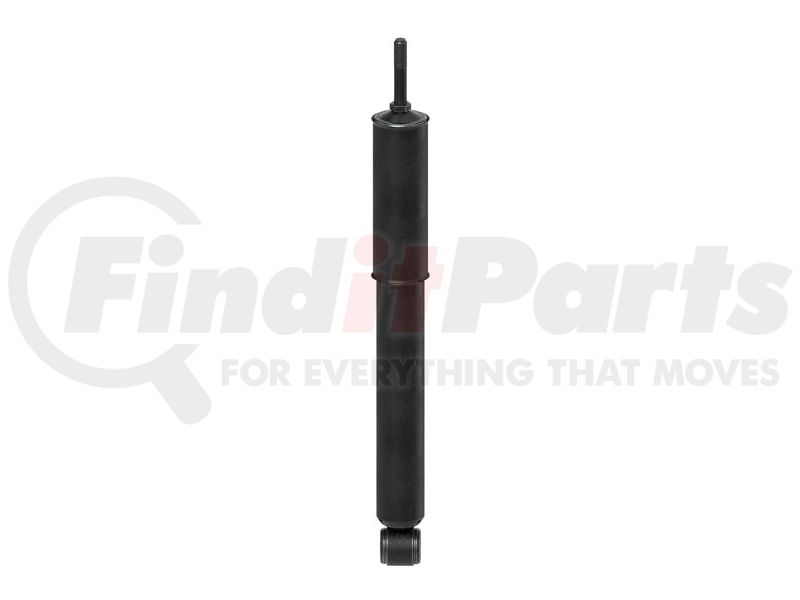

Name: Monroe 65534 Magnum Suspension Shock Absorber
SKU: 65534
Price: 76.99 USD
Availability: InStock

MONROE part description

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

Product Attributes

9791	L4
9789	S6
Dust Shield Included	Yes
9783	No
9908	No
9792	Yes
Part Description	Shock Absorber
Compressed Length	15.81 IN
Extended Length	23.96 in
Gas Charged	Yes
Lower Mount Type	Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Parts Pack(s)	P01482
Travel Length	8.15 in
Upper Mount Type	Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Compressed Length	401.6 MM
Extended Length	608.6 MM
Travel Length	207 MM
Shock Absorber Rod End Measuring Point	Base of Stem
Shock Absorber Body End Measuring Point	Center of Loop

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598126658
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

MONROE 65534 Cross Reference

We have 7 alternatives for the 65534 by MONROE:

Fits Vehicles

Peterbilt 536 (2022-2024)
Peterbilt 579 (2014-2024)
Peterbilt 389 (2014-2024)
Peterbilt 567 (2014-2024)
Peterbilt 520 (2017-2022)
Peterbilt 388 (2014-2015)
Peterbilt 367 (2008-2020)
Peterbilt 377 (1987-2001)
Peterbilt 365 (2014-2016)
Peterbilt 348 (2014-2016)
Peterbilt 376 (1988-1992, 1994-1996, 1999)
Peterbilt 375 (1987-1996)
Peterbilt 337 (2014-2021)
Peterbilt 378 (1990-2007)
Peterbilt 379 (1990-2007)
Peterbilt 357 (1986-2008)
