Name: Monroe 65146 Magnum Suspension Shock Absorber
SKU: 65146
Price: 84.99 USD
Availability: InStock

MONROE part description

Product Description

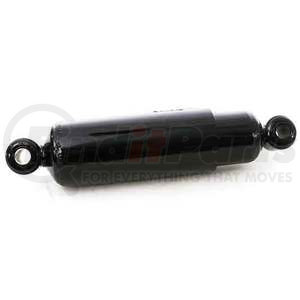

Magnum Suspension Shock Absorber

Features & Benefits

FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

Product Attributes

9791	LS53
9789	LS53
Dust Shield Included	Yes
9783	No
9908	No
9792	No
Part Description	Shock Absorber
Internal Construction Type	Twin Tube
Adjustable Damping	No
Color	Black
Finish	Painted
Shock Absorber Bore Size	1-3/4 IN
Foam Cell Design	No
Shaft Diameter	18 MM
Compressed Length	16.4375 IN
Dust Shield Material	Metal
Extended Length	23.36 in
Gas Charged	Yes
Lower Mount Type	Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 2" Sleeve OAL
Parts Pack(s)	None
Travel Length	6.922 in
Upper Mount Type	Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL
Compressed Length	417.5 MM
Extended Length	593.3 MM
Travel Length	175.8 MM
Shock Absorber Rod End Measuring Point	Center of Loop
Shock Absorber Body End Measuring Point	Center of Loop
9801	44.5 MM
9801	1.75 IN
Adjustable Damping	No

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598170460
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

MONROE 65146 Cross Reference

We have 20 alternatives for the 65146 by MONROE:

Fits Vehicles

International 7400 (2002-2020)
Mack Granite (2015-2022)
International WorkStar 7400 (2015-2016)
International WorkStar 7300 (2015-2016)
Volvo WC (1996-1999)
Volvo WI (1996-1998)
Mack TD700 (2010-2017)
Mack CT (2005-2007)
Mack GU8 (2012-2019)
Mack GU7 (2012-2019)
Mack GU5 (2012-2018)
Mack GU4 (2012-2019)
International WorkStar 7600 (2010-2016)
