MONROE 65162 Part Description

Manufacturer

MONROE

Product Description

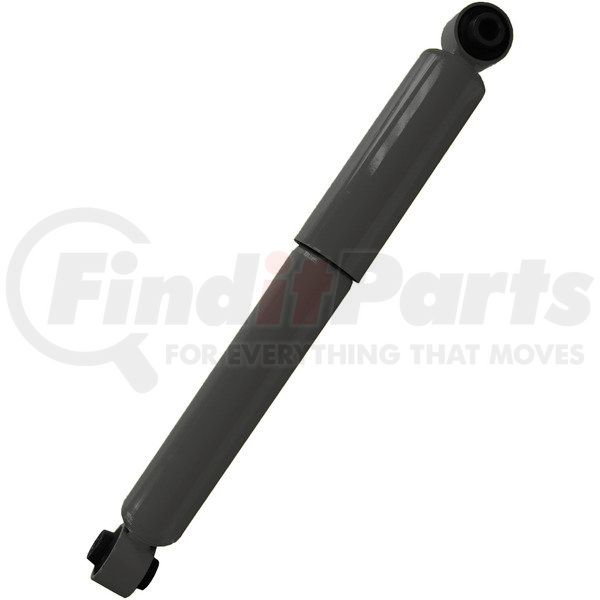

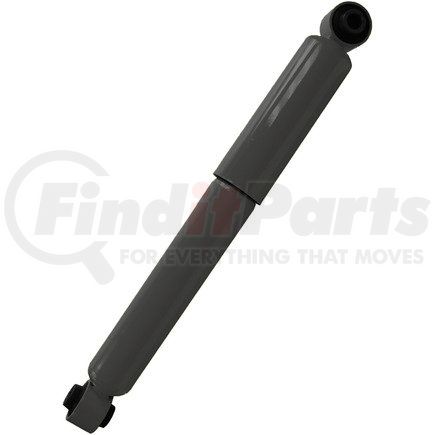

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 65162 Specifications

Product Attributes

Lower Mount Code LS86
Upper Mount Code LS86
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout No
Part Description Shock Absorber
Internal Construction Type Twin Tube
Adjustable Damping No
Color Black
Finish Painted
Shock Absorber Bore Size 1-3/4 IN
Foam Cell Design No
Shaft Diameter 18 MM
Compressed Length 13.656 IN
Dust Shield Material Metal
Extended Length 21.406 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 2.5/16" Sleeve OAL
Parts Pack(s) None
Travel Length 7.75 in
Upper Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 2.5/16" Sleeve OAL
Compressed Length 346.9 MM
Extended Length 543.7 MM
Travel Length 196.9 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop
Shock Absorber Bore Size 44.5 MM
Shock Absorber Bore Size 1.75 IN
Adjustable Damping No

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598003805
VMRS Code 016008003
UNSPSC 25172011

MONROE 65162 Part Interchanges

Brand Part Number
Hendrickson 58913007, 58913008, 58913009, 58913009L, 58913011, 58913007L, 58913011L, 65992003, 58913008L
Freightliner 1013592000, 1013745000, SDA47170000044
OEM 1013592000, 65992003, 58913007, 58913011, 58913009, 58913007L, 58913009L, 58913008, 85990
Blue Bird 119797, 85990, 58913007L, 589139, 106303, 589135, 47170000456, 00085990, 55017, 0085990
Gabriel 89503, 85959
Sachs 315414, 471700002727, 471700000440, 316485, 471700002991, 315597, 471700000466, 471700000456
Roadmaster 471700000456
FREIGHTLINER 1013592000, 1013745000
Meritor M85959
NAPA Shocks 65162
Automann A85959
Gold Shock Absorber 5001257
Bulldog HD HD12150060
PRT HD 925190
FCS F347232, F347224, F347272, F347244
KYB KG6006
Dayton Parts 44185959
Alliance Truck Parts ABPN32G900084, ABPN32G00084

MONROE 65162 Fits Vehicles

  • Freightliner M2 106 (2009-2024)
  • Blue Bird Vision School Bus (2004-2024)
  • Sterling Truck Acterra (2003-2010)
  • Blue Bird All American RE (1989-2020)
  • Blue Bird All American FE (1989-2016)
  • Sterling Truck Acterra 7500 (2001-2007)
  • Sterling Truck Acterra 6500 (2004-2007)
  • Sterling Truck Acterra 5500 (2001-2007)
