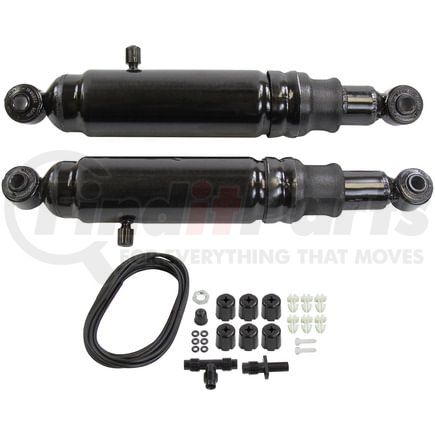

(888) 312-8812 Login SignupMONROE MA834 Max-Air Aire ajustable Amortiguador de Suspensión Neumática Paquete de 2
Tap to view 3 more
MSRP: $151.63
$11349
Save $38.14
Limited availability at this price!
In Stock
Get it by Tuesday, Jun 16
MONROE MA834 Part Description
Manufacturer
Product Description
Air Shock Absorber
Features & Benefits
- MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner's manual)
- EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
- EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
- BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
MONROE MA834 Specifications
Product Attributes
| Compressed Length | 15.53 IN |
| Compressed Length | 394.5 MM |
| Extended Length | 24.88 in |
| Extended Length | 632 MM |
| Travel Length | 9.35 in |
| Travel Length | 237.5 MM |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1,9/16" Sleeve OAL |
| Lower Mount Code | LS43 |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 39.69MM Sleeve OAL |
| Upper Mount Code | LS43 |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Parts Pack(s) | None |
| Part Description | Air Shock Absorber |
| Boot Included | Yes |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Grade Type | Premium |
Additional Information
| MSDS Sheet Number | 01164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598163035 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE MA834 Cross References
| Brand | Part Number |
|---|---|
| MA834MM, JK4Z6366601FA | |
| Chevrolet | 15130478, 15130480, 15788279, 15815523, 15815632, 15839302, 15839304, 15846889, 15886465, 15886467, 15903303, 15903305, 15903315, 15903323, 15903327, 15905101, 15905103, 15905104, 15909489, 15909490, 15909491, 15911937, 15911938, 15911939, 15918521, 15918522, 15918523, 15926834, 15926836, 15926846, 15926864, 15939373, 20765171, 20765177, 20765184, 20765185, 20765189, 20810264, 20810269, 20810270, 20823621, 20824497, 20833673, 20833674, 20833675, 20955404, 20955413, 20955414, 20955415, 20955417, 20955422, 20955425, 20955427, 20955428, 20955486, 20955487, 20955495, 20955497, 20955498, 20955500, 20955506, 20955513, 20955514, 20958798, 20958799, 22811852, 22811853, 22811854, 22811855, 22830632, 22891309, 22891310, 22891324, 22891328, 22891329, 22980430, 22980433, 23106628, 23106629, 23106630, 23106631, 23106633, 23124579, 23124580, 23124581, 23124584, 23124585, 23124589, 23124590, 23124591, 23124592, 23124593, 23124594, 23124595, 23124596, 23124598, 23130121, 23130122, 23148687, 23151123, 23156080, 23156081, 23156082, 23156090, 23156091, 23172263, 23179308, 23183864, 23183876, 23183880, 23183892, 23235084, 23268093, 23268096, 23275423, 23275427, 23276075, 23312167, 23314866, 23338789, 23338792, 23338796, 23338800, 23338809, 23338814, 23338824, 23338831, 23338839, 23338844, 23338859, 23338863, 23338867, 23338871, 23338879, 23338897, 23425607, 23425611, 23452959, 23464589, 25796769, 25821027, 25821028, 25845438, 25845439, 25845441, 25845442, 25845444, 25845445, 25845446, 25845447, 25870256, 25870890, 25870892, 25870894, 25870984, 25870986, 25870987, 25870990, 25871019, 25871023, 25871025, 25871036, 25871206, 25871207, 25871212, 25871215, 25871217, 25871236, 25871240, 25876832, 25876834, 25876873, 25876876, 25876878, 25888674, 25888675, 25888676, 25888677, 25888678, 25888679, 25888680, 25888681, 25888682, 25888683, 25888684, 25940740, 25980102, 84043171, 84043175, 84043180, 84043185, 84043190, 84043195, 84043200, 84043205, 84043209, 84043213, 84043217, 84043220, 84043221, 84043222, 84043223, 84043224, 84043225, 84043226, 84043227, 84043228, 84043229, 84043230, 84043231, 84043232, 84043233, 84043234, 84043235, 84059852, 84081998, 84082002, 84082006, 84082016, 84082021, 84082031, 84082035, 84082039, 84082041, 84082042, 84082043, 84176631 |
| GMC | 15130478, 15130480, 15788279, 15815523, 15815632, 15839302, 15839304, 15846889, 15886465, 15886467, 15903303, 15903305, 15903315, 15903323, 15903327, 15905101, 15905103, 15905104, 15909489, 15909490, 15909491, 15911937, 15911938, 15911939, 15918521, 15918522, 15918523, 15926834, 15926836, 15926846, 15926864, 15939373, 20765171, 20765177, 20765184, 20765185, 20765189, 20810264, 20810269, 20810270, 20823621, 20824497, 20833673, 20833674, 20833675, 20955404, 20955413, 20955414, 20955415, 20955417, 20955422, 20955425, 20955427, 20955428, 20955486, 20955487, 20955495, 20955497, 20955498, 20955500, 20955506, 20955513, 20955514, 20958798, 20958799, 22811852, 22811853, 22811854, 22811855, 22830632, 22891309, 22891310, 22891324, 22891328, 22891329, 22980430, 22980433, 23106628, 23106629, 23106630, 23106631, 23106633, 23124579, 23124580, 23124581, 23124584, 23124585, 23124589, 23124590, 23124591, 23124592, 23124593, 23124594, 23124595, 23124596, 23124598, 23130121, 23130122, 23148687, 23151123, 23156080, 23156081, 23156082, 23156090, 23156091, 23172263, 23179308, 23183864, 23183876, 23183880, 23183892, 23235084, 23268093, 23268096, 23275423, 23275427, 23276075, 23312167, 23314866, 23338789, 23338792, 23338796, 23338800, 23338809, 23338814, 23338824, 23338831, 23338839, 23338844, 23338859, 23338863, 23338867, 23338871, 23338879, 23338897, 23425607, 23425611, 23452959, 23464589, 25796769, 25821027, 25821028, 25845438, 25845439, 25845441, 25845442, 25845444, 25845445, 25845446, 25845447, 25870256, 25870890, 25870892, 25870894, 25870984, 25870986, 25870987, 25870990, 25871019, 25871023, 25871024, 25871025, 25871030, 25871036, 25871206, 25871207, 25871212, 25871215, 25871217, 25871236, 25871240, 25876832, 25876834, 25876873, 25876876, 25876878, 25888674, 25888675, 25888676, 25888677, 25888678, 25888679, 25888680, 25888681, 25888682, 25888683, 25888684, 25940740, 25980102, 84043171, 84043175, 84043180, 84043185, 84043190, 84043195, 84043200, 84043205, 84043209, 84043213, 84043217, 84043220, 84043221, 84043222, 84043223, 84043224, 84043225, 84043226, 84043227, 84043228, 84043229, 84043230, 84043231, 84043232, 84043233, 84043234, 84043235, 84059852, 84081998, 84082002, 84082006, 84082016, 84082021, 84082031, 84082035, 84082039, 84082041, 84082042, 84082043, 84176631 |
| Gabriel | 49235 |
| NAPA Shocks | MA834 |
MONROE MA834 Fits Vehicles
- Chevrolet Silverado 1500 LTD (2022)
- Chevrolet Silverado 1500 LD (2019)
- GMC Sierra 1500 Limited (2019, 2022)
- GMC Sierra 1500 (2007-2025)
- Chevrolet Silverado 1500 (2007-2025)
