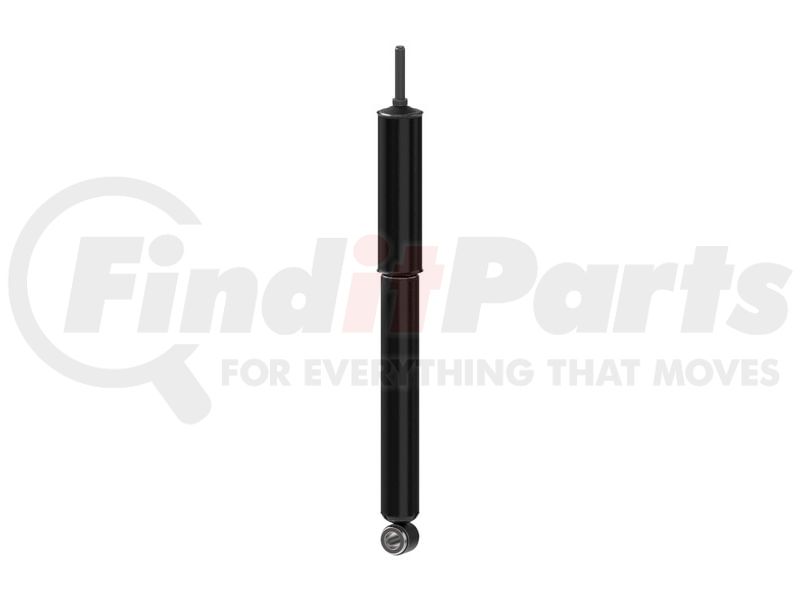

MONROE 65400 Magnum Suspension Shock Absorber

MSRP: $159.20

$67.49

Save $91.71

Limited availability at this price!

In Stock

Get it by Monday, Jan 26
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed over the weekend will ship the following business day

MONROE 65400 Part Description

Manufacturer

MONROE

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

  • FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
  • LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

MONROE 65400 Specifications

Product Attributes

Lower Mount Code L4
Upper Mount Code S6
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout Yes
Part Description Shock Absorber
Compressed Length 17.375 IN
Dust Shield Material Metal
Extended Length 26.75 in
Gas Charged Yes
Lower Mount Type Loop Bushing Mount - 1" Bushing ID X 1.3/4" Bushing OAL
Parts Pack(s) P01482
Travel Length 9.375 in
Upper Mount Type Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Compressed Length 441.3 MM
Extended Length 679.4 MM
Travel Length 238.1 MM
Shock Absorber Rod End Measuring Point Base of Stem
Shock Absorber Body End Measuring Point Center of Loop

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598173003
VMRS Code 016008003
UNSPSC 25172011

MONROE 65400 Cross References

BrandPart Number
85317, 89427, 65400MM, MAE65400
Alliance Truck PartsABPN32O900039, ABPN32G900039
BULLDOG HD SHOCKSHD1215-0037
Bulldog HDHD12150037
CHEVROLET3919946
Dayton Parts44185033
FCSF346598, F346599, F343368, F344355, F344353, F346633, F347215, F347303
GABRIEL85033, 89427
GM3919946
General Motors3919946
HALDEXSA65400
INTERNATIONALAMS650400
KENWORTH0306085PLUS
KYB341620, 341621
KYB AMERICA LLC.341620
MACK650400
MERITORM85033, M89427
MONROE VINTAGE650400
Monroe Shocks & Struts650400
NAPA Shocks65400
NEWAY57365400
NavistarAMS650400
OEM307423, 665633, 306084, 305384, 0305384, 0306084, 0307423
PACCAR PARTS665633
PETERBILT306084, 307423, 0306084
PETERBILT 307423
POWER10 PARTSSSA-85033
Paccar Parts0306084, 0307423, 307423, 306084
Peterbilt0305384, 0307423, 665633, 305384
SACHS NORTH AMERICA315549
Sachs315549
VOLVO / WHITE / GMC3919946, SA5033
Volvo GM Heavy Truck3919946, SA5033

MONROE 65400 Fits Vehicles

  • Peterbilt 587 (2011-2015)
  • Peterbilt 386 (2006-2016)
  • Peterbilt 372 (1989-1995, 1997)
  • Peterbilt 377 (1987-2001)
  • Peterbilt 362 (1981-2006)
  • Peterbilt 384 (2008-2016)
  • Peterbilt 385 (1996-2007)
  • Peterbilt 376 (1988-1992, 1994-1996, 1999)
  • Peterbilt 375 (1987-1996)
  • Peterbilt 330 (1995-2002)
  • Peterbilt 379 (1986-2007)
  • Peterbilt 357 (1986-2008)
  • Peterbilt 378 (1988-2007)
  • Peterbilt 387 (2000-2003)
