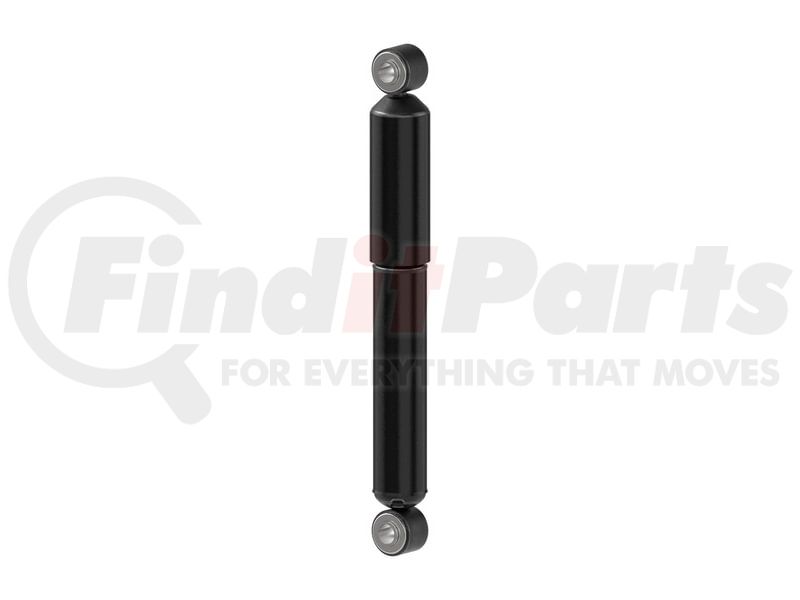

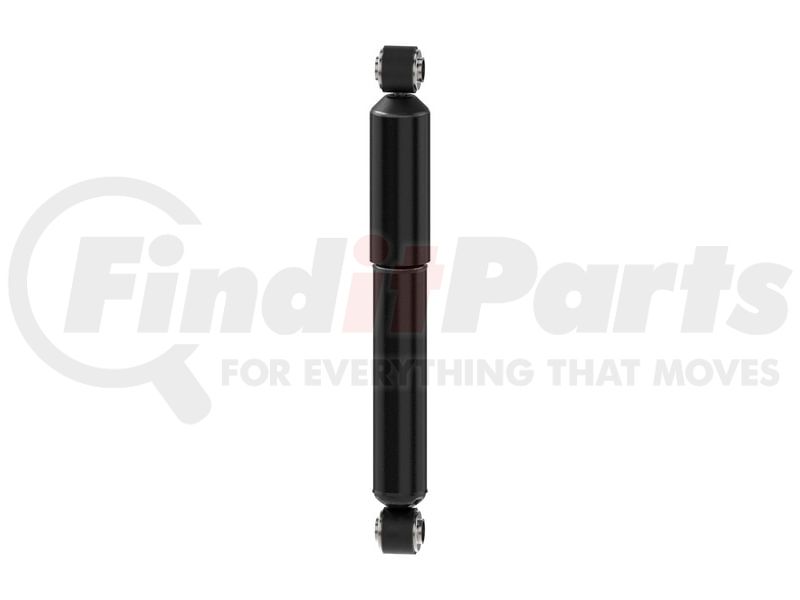

MONROE 66893 Suspension Shock Absorber - Premium Gas, Hydraulic Lockout, LS54 Mount

66893 by MONROE - Suspension Shock Absorber - Premium Gas, Hydraulic Lockout, LS54 Mount
MONROE
Tap to view 5 more
SHIPS TODAY

MSRP: $95.73

$52.99

Save $42.74

Limited availability at this price!

In Stock

Get it by Thursday, Jan 22
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

MONROE 66893 Part Description

Manufacturer

MONROE

Features & Benefits

  • Experience superior control for heavy-duty trucks and vans without sacrificing a comfortable driving experience
  • Built to last with a nitrocarburized rod and sintered iron piston for extended service life and reduced wear
  • Larger bore and reserve tube capacity enhance efficiency, delivering optimal control and minimizing shock fade
  • OE all-weather fluid adapts to extreme temperatures, ensuring smooth operation and consistent performance
  • Nitrogen gas charge maintains optimal tire contact for improved handling and reduced shock fade

Monroe Gas-Magnum 60 Series Suspension Shock Absorber

Enhance handling and ride quality with the Monroe Gas-Magnum 60 Series Suspension Shock Absorber. Specially crafted for midsize and full-size trucks and vans, this shock absorber is your go-to solution for a balanced ride and firm control. Its heavy-duty nitrocarburized rod alongside a sintered iron piston ensures top-tier durability and extends the lifespan of the shock absorber. The larger bore, coupled with a 2-inch reserve tube, significantly boosts the oil capacity, thereby enhancing the shock's efficiency. Consistent tire-to-road contact is maintained by the nitrogen gas charge, which effectively reduces aeration and shock fade. A self-lubricating fluid seal is included to lower friction against the piston rod, further minimizing wear. Whether in extreme heat or frigid cold, Monroe 66893 shock absorber’s OE all-weather fluid promises you a smooth and reliable driving experience.

MONROE 66893 Specifications

Product Attributes

Lower Mount Code LS54
Upper Mount Code LS54
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout Yes
Part Description Shock Absorber
Internal Construction Type Twin Tube
Adjustable Damping No
Color Black
Finish Painted
Shock Absorber Bore Size 35 MM
Foam Cell Design No
Shaft Diameter 16 MM
Compressed Length 11.9375 IN
Dust Shield Material Metal
Extended Length 17.4531 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Parts Pack(s) None
Travel Length 5.515 in
Upper Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Compressed Length 303.2 MM
Extended Length 443.3 MM
Travel Length 140.1 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop
Adjustable Damping No
Active or Passive Suspension Passive
Adjustable Rebound No
Adjustable Compression No
Compressed Length (mm) 296.9
Extended Length (in) 16.8281
Compressed Length (in) 11.6875
Adjustable Ride Height No
Lower Mount Code LS54
Lower Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Mounting Hardware Included No
Travel Length (mm) 130.6
Travel Length (in) 5.14
Grade Type Premium
Upper Mount Code LS54
Upper Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Extended Length (mm) 427.4

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598074171
VMRS Code 016008003
UNSPSC 25172011

MONROE 66893 Cross References

BrandPart Number
85000, 66893MM, MAE66893
ACDELCO5089
Alliance Truck PartsABPN32G900028, ABPN32O900028, ABPN32O900082, ABPN32O900011, ABPN32G900082, ABPN32O900002, ABPN32G900002, ABPN32G900011
BATCO1083203, 1089000, 1089001, 1083204
BULLDOG HD SHOCKSHD1214-0508
Bulldog HDHD12140508
CHANCE COACH6893
CHEVROLET5348631, 4940627, 5559363, 3919959, 3919913
DUPLEX59030
DURA SUSPENSION59030
Dayton Parts441832036893
EAST TRAILERA20002
ELDORADO NATIONALA20002
EUCLIDE83203
FCSF347194, F347216, F347274
FREIGHTLINER1614759000
FRUEHAUFUCD6216001, UCD62161
GABRIEL85000 , 83203, 665536, 680341, 665788, 727603, 665950, 680565, 665197, 680467, 85323, 665766, 59019, 651056, 65351101, 680509, 680591, 85007, 89436
GILLIG1583470
GM5348631, 3919959, 3919913, 5559363, 4940627
General Motors5348631, 3919959, 3919913, 5559363, 4940627
Gold Shock Absorber8150242, 8160119, 8180262, 9160539
HALDEXSA66893
HENDRICKSONS23013, 524125, S23566, B24023, S20002, A1667, A20889, B23013, B24125, A20002, S1667, S24023, A21553, B21832, A14583, A1668, B23566, S24577, S20889, B24577, S24125
HIGHWAY PRODUCTSA16135
HUTCHENS942300
Holland90045299
INTERNATIONALAMS660104, AMS600104, AMS650416
KYB345617
KYB AMERICA LLC.345617
MACK650416MT, 600104MT, 660104MT, 25621810, 14QK2108
MERITORM83203, M89436, M85323
MONROE VINTAGE6046, 661104, 16327, 650416, 6893, 6896, 70654, 16653, 601104
MOTORCRAFTCAX893
Monroe Shocks & Struts16327, 16653, 601104, 6046, 650416, 661104, 6893, 6896, 70654
NAPA Shocks66893
NEWAY90044071, 90044086, AR1434, 90044095, 90044081, 57306893, AR2451, AR781, 90044008, 57366893, 57365416, 90044981, 90045299, AR718C
NUTURN/LELANDL57639, L59019
NavistarAMS600104, AMS650416, AMS660104
OEM10147, 1253069B000, 1270563B000, 1266009B000, S23566, 90045299, S1667
ORION20273544, 20273541, 202735414
OSHKOSH1583470
PAGE & PAGE665133
REYCO GRANNING1288503, 1880001
RIDEWELL CORPS6009B, AS563B, 1266009B000, 1253069B000, 1250563B000
Ridewell Corp1270563B000
STOUGHTON TRAILERSHTA200002
THOMAS BUILT BUSES61310232
TORQUE PARTSTR83203
TRAIL MOBILE434237, 436028, 436118, 90044977, 434277, 438013
TURNER / QUICK LIFT CORP.A20126, A1667
TWIN COACHAR718CHD
Trailmobile434237, 434277, 436028, 436118, 438013, 90044977
TurnerA1667, A20126
VOLVO 3919913
VOLVO / WHITE / GMC3919959, RCSA3203, 3919913, SA5323
Volvo GM Heavy Truck3919913, 3919959, RCSA3203, SA5323
WATSON & CHALIN10147

MONROE 66893 Fits Vehicles

  • Freightliner FLB (1994-1999, 2002)
  • Freightliner FLD120 (1988-2011)
  • Freightliner FLC112 (1985-2001)
  • Freightliner FLD112 (1991-2006)
  • Freightliner FLC120 (1981-1988, 1991)
