MONROE part description

Product Description

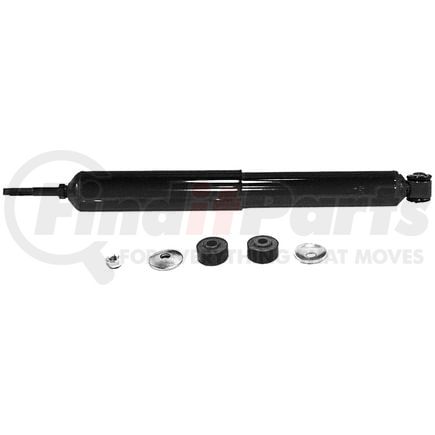

Magnum RV Suspension Shock Absorber

Features & Benefits

  • FOR RECREATIONAL VEHICLES -- Designed to handle the demands of recreational vehicles that go on cross country adventures and trips close to home
  • CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to improve performance (when required)
  • EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the bore provides more efficient and consistent control (most applications)
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
  • STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
  • BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (when required)
  • REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
  • BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

Product Attributes

9791 LS39
9789 S5
Dust Shield Included Yes
9783 No
9908 No
9792 Yes
Part Description Shock Absorber
Compressed Length 14.43 IN
Extended Length 23.39 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.5/8" Sleeve OAL
Parts Pack(s) P01167
Travel Length 8.96 in
Upper Mount Type Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch
Compressed Length 366.5 MM
Extended Length 594.1 MM
Travel Length 227.6 MM
Shock Absorber Rod End Measuring Point Base of Stem
Shock Absorber Body End Measuring Point Center of Loop

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598147424
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

MONROE 557045 Cross Reference

We have 4 alternatives for the 557045 by MONROE:

Fits Vehicles

  • Holiday Rambler Ambassador (2002-2014)
