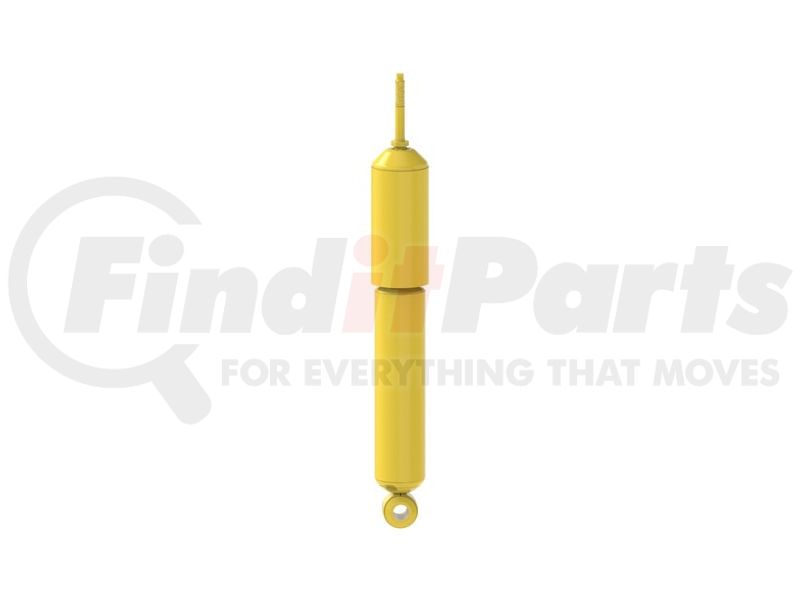

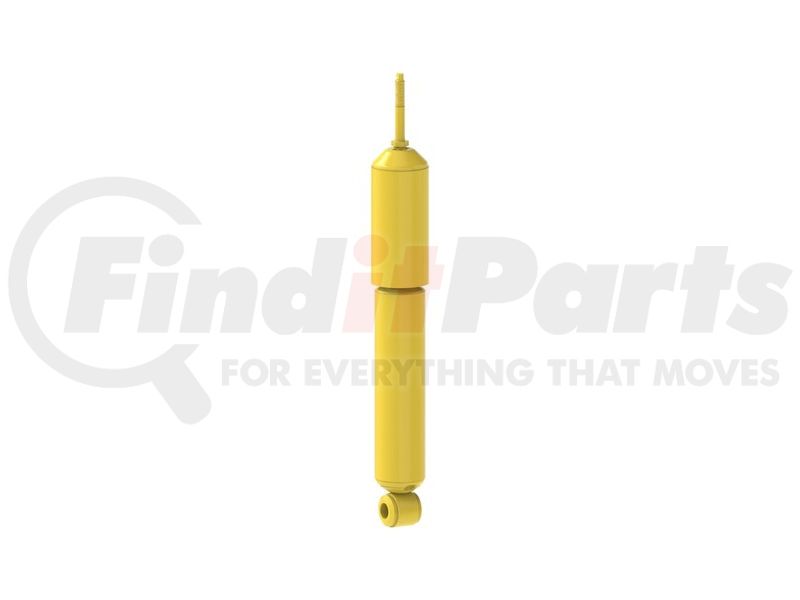

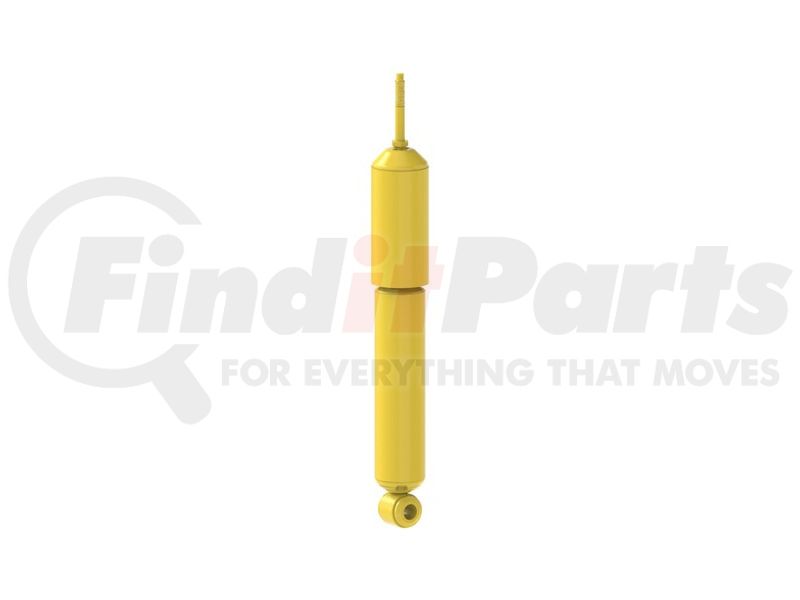

Monroe 34760 - Gas-Magnum Suspension Shock Absorber
$4549
MSRP: $99.93
Save: $54.44
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
MONROE part description
Product Description
Gas-Magnum Suspension Shock Absorber
Features & Benefits
- DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
- BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
Product Attributes
9791 | L1 |
9789 | S4 |
Dust Shield Included | Yes |
9783 | No |
9908 | Yes |
9792 | No |
Part Description | Shock Absorber |
Compressed Length | 9.875 IN |
Dust Shield Material | Metal |
Extended Length | 14.625 in |
Gas Charged | Yes |
Lower Mount Type | Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL |
Parts Pack(s) | P01135 |
Travel Length | 4.75 in |
Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
Compressed Length | 250.8 MM |
Extended Length | 371.5 MM |
Travel Length | 120.6 MM |
Shock Absorber Rod End Measuring Point | Base of Stem |
Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
MSDS Sheet Number | 1164 |
Country of Origin (Primary) | US |
Canadian Harmonizing Tariff Code | 8708803000 |
Harmonized Tariff Code (Schedule B) | 8708801600 |
Harmonized Tariff Code (HTS) | 8708801600 |
UPC | 00048598050007 |
VMRS Code | 016008003 |
UNSPSC | 25172011 |
Part Interchanges
- Ford 3U2Z18125RA
- Ford 6C2Z18124A
- Ford 6C2Z18125A
- Ford 7C2Z18125D
- Ford 8C2Z18124A
- Ford 8C2Z18124B
- Ford 8C2Z18124C
- Ford 8C2Z18124D
- Ford 8C2Z18125A
- Ford 8C2Z18125B
- Ford 8C2Z18125C
- Ford 8C2Z18125D
- Ford F2UZ18124B
- Ford F2UZ18124D
- Ford F2UZ18125D
- Ford F4UZ18125C
- Ford F5UZ18124A
- Ford F5UZ18124B
- Ford F5UZ18125A
- Ford F7UZ18125AA
- Ford F7UZ18125AB
- Ford F8AZ18125BB
- LTV 58622
- KYB 554369
- KYB 344370
- KYB 345080
- Gabriel 83177
- Koni 822499
- AutoZone TS34-31391B
- Motorcraft AT163G
- Gabriel 58622
- Gabriel 91772
- FCS Auto Parts 342827
- Sachs 310218
- Motorcraft ASH1154
- OEM 8C2Z18124C
- OEM 8C2Z18124B
- OEM 8C2Z18124A
- TRW JGT4418S
- Koni 88051042
- Bilstein 33187570
- OEM 8C2Z18124D
- Gabriel G63622
- KYB 344380
- AutoZone TS3431391B
- Sensen 12140177
- NAPA Shocks 76760
- AL-KO Xtreme 813098
- Gold Shock Absorber 9160481
- Bulldog HD HD12140638
- PRT 175450
- PRT 193581
- FCS 341582
- FCS 342827
- KYB KG6413
- KYB 565120
- KYB 565014
- KYB KG5497
- MasterPro Shocks and Struts FD107
- Duralast TS3431391B
- NAPA Proformer SH81744
MONROE 34760 Cross Reference
We have 25 alternatives for the 34760 by MONROE:
- MERITOR MG60182
- 34760MM
- MAE34760
- NAVISTAR AMS34760
- GABRIEL G63622
- KYB 554369
- KYB 344370
- KYB 345080
- GABRIEL 83177
- KONI 822499
- AUTOZONE TS34-31391B
- MOTORCRAFT AT163G
- GABRIEL 58622
- GABRIEL 91772
- FCS AUTO PARTS 342827
- SACHS NORTH AMERICA 310218
- MOTORCRAFT ASH1154
- OEM 8C2Z18124C
- OEM 8C2Z18124B
- OEM 8C2Z18124A
- TRW JGT4418S
- KONI 88051042
- BILSTEIN 33187570
- OEM 8C2Z18124D
- BULLDOG HD SHOCKS HD1214-0638
Fits Vehicles
- Ford E-150 Econoline (2008)
- Ford E-150 (2008-2014)
- Ford E-350 Super Duty (1999-2019, 2021-2024)
- Ford E-450 Econoline Super Duty (1999-2002)
- Ford E-350 Club Wagon (2002-2005)
- Ford E-350 Econoline Club Wagon (1992-2002)
- Ford E-350 Econoline (1992-2000)
- Ford E-250 (2003-2014)
- Ford E-250 Econoline (1992-2002)
- Ford E-450 Super Duty (2003-2019, 2021-2024)
- Ford Econoline Super Duty (1996-1999)
