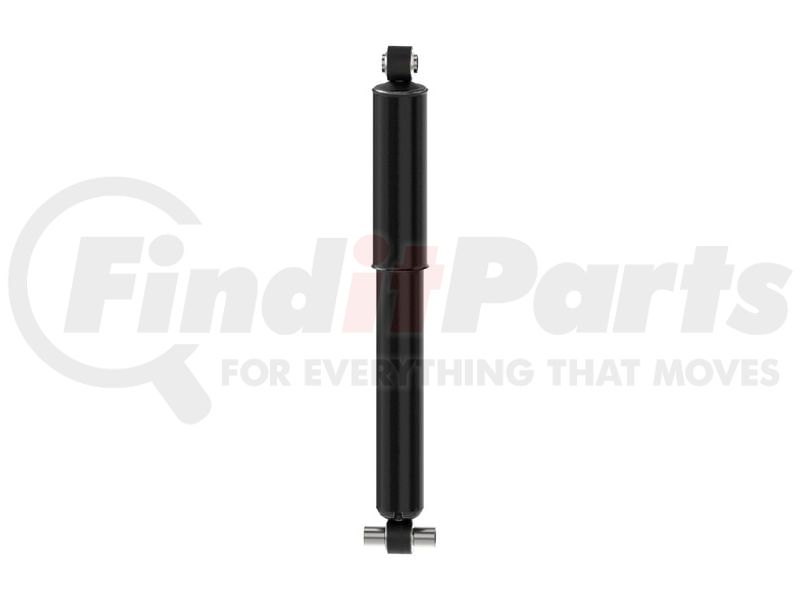

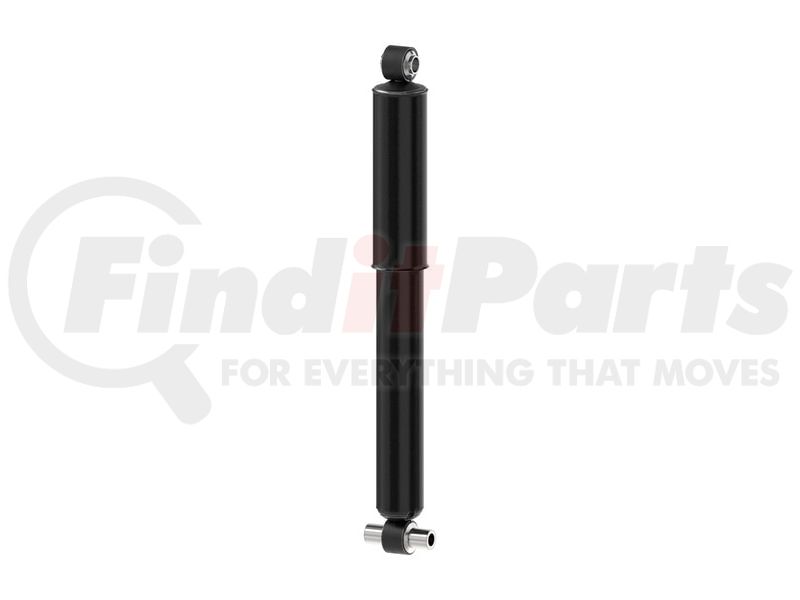

Name: Monroe 65504 Magnum Suspension Shock Absorber
SKU: 65504
Price: 76.49 USD
Availability: InStock

MONROE part description

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

Product Attributes

9791	LS87
9789	LS54
Dust Shield Included	Yes
9783	No
9908	No
9792	Yes
Part Description	Shock Absorber
Compressed Length	15.172 IN
Dust Shield Material	Metal
Extended Length	24.125 in
Gas Charged	Yes
Lower Mount Type	Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 3.9/16" Sleeve OAL
Parts Pack(s)	P01471
Travel Length	8.953 in
Upper Mount Type	Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Compressed Length	385.4 MM
Extended Length	612.8 MM
Travel Length	227.4 MM
Shock Absorber Rod End Measuring Point	Center of Loop
Shock Absorber Body End Measuring Point	Center of Loop

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598174048
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

MONROE 65504 Cross Reference

We have 21 alternatives for the 65504 by MONROE:

Fits Vehicles

Kenworth T800 (2004-2023)
Volvo VNL 300 (2016-2020)
Autocar LLC. DC-64 (2020-2023)
Autocar LLC. Xpert (2017-2020)
Kenworth W900 (2003-2022)
Autocar LLC. Xpeditor (2008-2022)
Western Star 4700SF (2012-2020)
Western Star 4700SB (2012-2020)
Kenworth W990 (2019-2022)
International HV507 (2019-2020)
International HV513 (2019-2020)
International HV613 (2019-2020)
International HV607 (2019-2020)
Mack Pinnacle (2019-2021)
Volvo VNL (2000-2020)
Volvo VHD (2001-2022)
Mack TD700 (2010-2017)
Kenworth T880 (2014-2023)
Kenworth T680 (2013-2022)
Caterpillar CT660 (2012-2017)
