MONROE 74465 Part Description
Manufacturer
Product Description

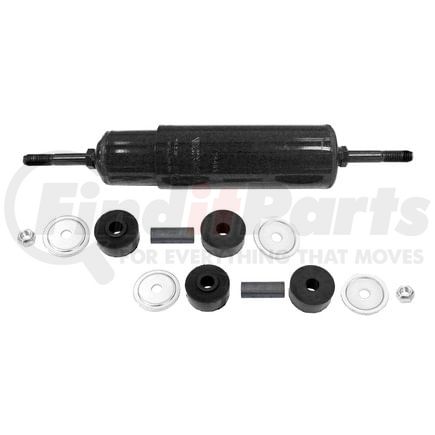

Magnum Suspension Shock Absorber
Features & Benefits
- FOR HARDWORKING TRANSIT BUSES -- Designed to handle the demands of high mileage and severe use transit buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/4-in. reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore allows valve finetuning by allowing more hydraulic fluid to dissipate heat for better control
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (when required)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
MONROE 74465 Specifications
Product Attributes
| Lower Mount Code | S6 |
| Upper Mount Code | S6 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | Yes |
| Part Description | Shock Absorber |
| Internal Construction Type | Twin Tube |
| Dust Shield Diameter | 3.15 IN |
| Adjustable Damping | No |
| Color | Black |
| Finish | Painted |
| Shock Absorber Bore Size | 1-3/4 IN |
| Shaft Diameter | 18 MM |
| Body Diameter | 2.75 IN |
| Compressed Length | 13.02 IN |
| Dust Shield Material | Metal |
| Extended Length | 20.06 in |
| Gas Charged | No |
| Lower Mount Type | Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
| Parts Pack(s) | None |
| Shock Absorber Body End Measuring Point | Base of Stem |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Travel Length | 7.04 in |
| Upper Mount Type | Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598082282 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 74465 Part Interchanges
| Brand | Part Number |
|---|---|
| Motor Coach Industries | 6314933, 680333, 12L571 |
| Sachs | 40A850, 251700106654, 106884 |
| Koni | 881510, 881532 |
| New Flyer | 152959, 680671 |
| MAN Truck & Bus | 251700106654 |
| Monroe Vintage | 74421 |
| Gabriel | 85708 |
| Meritor | 680671, M85708 |
| Monroe Shocks & Struts | 74421 |
| General Motors | 97221000164 |
| MAN | 251700106654, 81437016543 |
| Van Hool | 624314040 |
| Prevost | 196533 |
| Flxible Transit Bus | 15813, 97221000157 |
| NAPA Shocks | 74465 |
| Automann | A85708 |
| Volvo Truck | 3919991 |
| Gold Shock Absorber | 8190104 |
| FCS | F343371 |
MONROE 74465 Cross References
We have 15 alternatives for the 74465 by MONROE:
