MONROE part description

Product Description

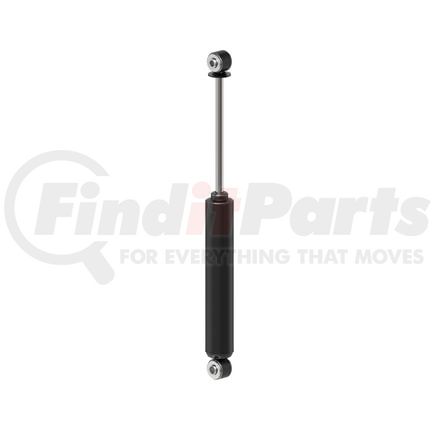

Magnum Steering Damper

Features & Benefits

  • REDUCES VIBRATION -- Ideal for trucks, vans, SUVs, and CUVs, it helps reduce vibrations that travel through the steering system before they get to the driver to improve control and cut down on driver fatigue in all driving conditions
  • CONSISTENT PERFORMANCE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
  • STRONG AND DURABLE -- Sintered iron piston and .50-in. nitrocarburized piston rod for enhanced durability and long service life
  • EXCEPTIONAL HANDLING -- Full displaced valving delivers better valving range on both compression and extension cycles for consistent performance
  • LONGER SERVICE LIFE -- Self-lubricating fluid seal retains gas without excessive wear or friction
  • MOUNTS HORIZONATALLY -- Micro-cellular gas design allows the unit to be mounted horizontally without impacting performance for improved steering control

Product Attributes

Compressed Length 12.75 IN
Extended Length 20.75 in
Shock Absorber Body End Measuring Point Center of Loop
Travel Length 8 in
Body Diameter 1.86 IN
Lower Mount Type Loop Bushing And Sleeve Mount - 12mm Sleeve ID X 34.9mm Sleeve OAL
Lower Mount Code LS24
Upper Mount Type Loop Bushing And Sleeve Mount - 10mm Sleeve ID X 36.5mm Sleeve OAL
Upper Mount Code LS5
Dust Shield Included No
Dust Shield Material N/A
Gas Charged No
Parts Pack(s) P01326
Shock Absorber Rod End Measuring Point Center of Loop
Part Description Steering Damper
Compressed Length 323.8 MM
Extended Length 527.1 MM
Travel Length 203.2 MM
Body Diameter 47.2 MM

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708949900
Harmonized Tariff Code (Schedule B) 8708947550
Harmonized Tariff Code (HTS) 8708947550
UPC 00048598029904
VMRS Code 015004022
UNSPSC 25174202

Part Interchanges

MONROE SC2962 Cross Reference

We have 2 alternatives for the SC2962 by MONROE:

Fits Vehicles

  • Jeep Grand Cherokee (1999-2004)
