Name: Monroe MA819 Max-Air Air Adjustable Air Shock Absorber Pack of 2
SKU: ma819
Price: 148.49 USD
Availability: InStock

MONROE part description

Product Description

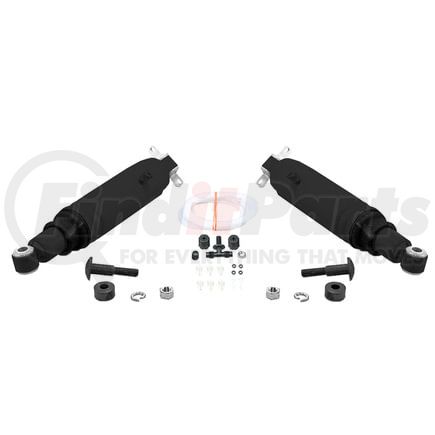

Max-Air Air Adjustable Air Shock Absorber Pack of 2

Features & Benefits

MAINTAIN RIDE HEIGHT UNDER LOAD -- Air chamber can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by suspension, tires and transmission; see owner's manual)
EASY TO ADJUST -- Special air fitting resists air leakage and ties into factory system (where applicable) or manually inflates with an air compressor; pair with Monroe air shock accessory and shock air hose AK kits (varies by application)
EXCEPTIONAL HANDLING -- Full-displaced valving on compression and extension cycles for a smooth ride
BUILT TO LAST -- Hardened and precision ground piston rod for consistent performance, sintered iron piston for enhanced durability and longer service life and lubricated air sleeve reduces friction for smooth operation
CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction

Product Attributes

Compressed Length	13.375 IN
Extended Length	21.25 in
Travel Length	7.875 in
9791	L1/CP3
Lower Mount Type	L1/CP3
Upper Mount Code	XP7
Upper Mount Type	Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Dust Shield Included	Yes
Dust Shield Material	Rubber
9783	Yes
Hydraulic Lockout	No
Parts Pack(s)	(2) P00576
Part Description	Air Shock Absorber
9908	Yes
Compressed Length	339.7 MM
Extended Length	539.8 MM
Travel Length	200 MM
Shock Absorber Body End Measuring Point	Center of Loop
Shock Absorber Rod End Measuring Point	Center of Cross Pin
Lower Mount Type	Loop Bushing and Cantilever Pin Mount - 1/2" Stud Diameter X 1 5/16" Stud Length (Center of Loop to Frame)

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598031778
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

MONROE MA819 Cross Reference

We have 4 alternatives for the MA819 by MONROE:

Fits Vehicles

Chevrolet Caprice (1982-1996)
Cadillac Commercial Chassis (1992-1996)
Cadillac Brougham (1991-1992)
Cadillac Fleetwood (1993-1996)
Buick Roadmaster (1992-1996)
