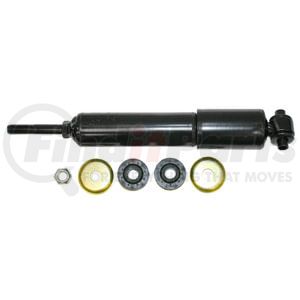

(888) 312-8812 Login SignupMagnum Cab Suspension Shock Absorber
| Lower Mount Code | S4 |
| Upper Mount Code | LS29 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | No |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 8.25 IN |
| Dust Shield Material | Metal |
| Extended Length | 11.375 in |
| Gas Charged | Yes |
| Lower Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Parts Pack(s) | P01135 |
| Travel Length | 3.125 in |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 44.45MM Sleeve OAL |
| Compressed Length | 209.5 MM |
| Extended Length | 288.9 MM |
| Travel Length | 79.4 MM |
| Shock Absorber Rod End Measuring Point | Center of Loop |
| Shock Absorber Body End Measuring Point | Base of Stem |
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598076571 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
| Brand | Part Number |
|---|---|
| 66115MM, MAE66115 | |
| Automann | A83045 |
| BULLDOG HD SHOCKS | HD1214-0553 |
| Bulldog HD | HD12140553 |
| FCS | F344349 |
| GABRIEL | 83045, 83050 |
| Gold Shock Absorber | 5001262 |
| HALDEX | SA66115 |
| MACK | 14QK399M3, 14QK432M, 20873442, 14QK399M2, 25635636, 14QK399, 25635637 |
| MERITOR | M83045 |
| Mack | 14QK303M, 25625635, 25625636 |
| NAPA Shocks | 66115 |
| NAVISTAR | AMS66115 |
| OEM | 25625636, 25625635, 20873442, 14QK303M, 14QK432M |
| SACHS NORTH AMERICA | 317778 |
| Sachs | 317778 |
| TORQUE PARTS | TR83045 |
| VOLVO / WHITE / GMC | RCSA3045, SA3045 |
| Volvo GM Heavy Truck | RCSA3045, SA3045 |
| Volvo Truck | 83176193 |
