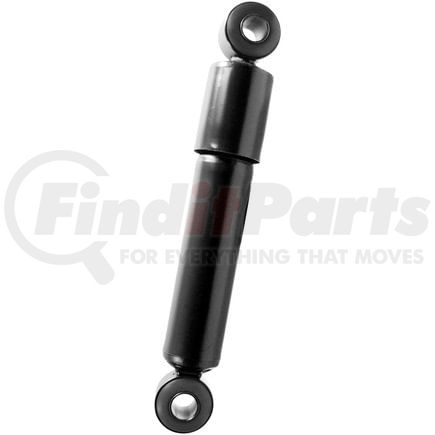

Monroe 65417 - Magnum Suspension Shock Absorber
$8899
MSRP: $96.21
Save: $7.22
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
MONROE part description
Product Description
Magnum Suspension Shock Absorber
Features & Benefits
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
- BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
Product Attributes
9791 | LS65 |
9789 | LS65 |
Dust Shield Included | Yes |
9783 | No |
9908 | No |
9792 | Yes |
Part Description | Shock Absorber |
Compressed Length | 11.625 IN |
Dust Shield Material | Metal |
Extended Length | 14.75 in |
Gas Charged | Yes |
Lower Mount Type | Loop Bushing and Sleeve Mount - 1" Sleeve ID X 2" Sleeve OAL |
Parts Pack(s) | None |
Travel Length | 3.125 in |
Upper Mount Type | Loop Bushing and Sleeve Mount - 1" Sleeve ID X 2" Sleeve OAL |
Compressed Length | 295.3 MM |
Extended Length | 374.7 MM |
Travel Length | 79.4 MM |
Shock Absorber Rod End Measuring Point | Center of Loop |
Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
MSDS Sheet Number | 1164 |
Country of Origin (Primary) | US |
Canadian Harmonizing Tariff Code | 8708803000 |
Harmonized Tariff Code (Schedule B) | 8708801600 |
Harmonized Tariff Code (HTS) | 8708801600 |
UPC | 00048598173171 |
VMRS Code | 016008003 |
UNSPSC | 25172011 |
Part Interchanges
- General Motors 3919960
- International AMS650417
- Neway 57365417
- Monroe Vintage 70635
- Monroe Vintage 650417
- Mack 650417
- Fruehauf UCE2983000
- Mack 650417MT
- Chevrolet 3919960
- Fruehauf UCE002983001
- Gabriel 85322
- Fruehauf UCE28931
- VOLVO / WHITE / GMC 3919960
- Euclid M85322
- Fruehauf UCE29831
- Neway OE10222
- Fruehauf UCE2983001
- MACK 650417MT
- Monroe Shocks & Struts 650417
- Monroe Shocks & Struts 70635
- Navistar AMS650417
- Volvo GM Heavy Truck 3919960
- NAPA Shocks 65417
- Gold Shock Absorber 5001291
MONROE 65417 Cross Reference
We have 21 alternatives for the 65417 by MONROE:
- MERITOR M85322
- 65417MM
- MAE65417
- GABRIEL 85322
- GM 3919960
- INTERNATIONAL AMS650417
- NEWAY 57365417
- MONROE VINTAGE 70635
- MONROE VINTAGE 650417
- MACK 650417
- FRUEHAUF UCE2983000
- MACK 650417MT
- CHEVROLET 3919960
- FRUEHAUF UCE002983001
- FRUEHAUF UCE28931
- VOLVO / WHITE / GMC 3919960
- EUCLID M85322
- FRUEHAUF UCE29831
- NEWAY OE10222
- FRUEHAUF UCE2983001
- HALDEX SA65417
