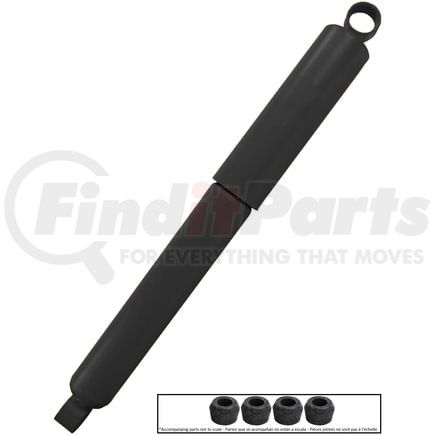

Monroe 65112 - Magnum Suspension Shock Absorber
$8099
MSRP: $100.09
Save: $19.10
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
MONROE part description
Product Description
Magnum Suspension Shock Absorber
Features & Benefits
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
- BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty
Product Attributes
9791 | L3 |
9789 | L3 |
Dust Shield Included | Yes |
9783 | No |
9908 | No |
9792 | No |
Part Description | Shock Absorber |
Internal Construction Type | Twin Tube |
Adjustable Damping | No |
Color | Black |
Finish | Painted |
Shock Absorber Bore Size | 1-3/4 IN |
Foam Cell Design | No |
Shaft Diameter | 18 MM |
Compressed Length | 15.125 IN |
Dust Shield Material | Metal |
Extended Length | 24.75 in |
Gas Charged | Yes |
Lower Mount Type | Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
Parts Pack(s) | None |
Travel Length | 9.625 in |
Upper Mount Type | Loop Bushing Mount - 3/4" Bushing ID X 1.9/16" Bushing OAL |
Compressed Length | 384.2 MM |
Extended Length | 628.7 MM |
Travel Length | 244.5 MM |
Shock Absorber Rod End Measuring Point | Center of Loop |
Shock Absorber Body End Measuring Point | Center of Loop |
9801 | 44.5 MM |
9801 | 1.75 IN |
Adjustable Damping | No |
Additional Information
MSDS Sheet Number | 1164 |
Country of Origin (Primary) | US |
Canadian Harmonizing Tariff Code | 8708803000 |
Harmonized Tariff Code (Schedule B) | 8708801600 |
Harmonized Tariff Code (HTS) | 8708801600 |
UPC | 00048598170125 |
VMRS Code | 016008003 |
UNSPSC | 25172011 |
Part Interchanges
- General Motors 3919942
- Mack 650112MT
- Monroe Vintage 70141
- Ford F1HZ18124K
- Ford F1HT18045EA
- Ford F1HT18045EB
- Ford F6HT18045RB
- Ford F1HZ18124C
- Ford F1HT18045RA
- Monroe Vintage 70136
- Ford F1HT18045RB
- Neway 57365112
- Monroe Vintage 70143
- VOLVO / WHITE / GMC 3919942
- Monroe Vintage 650112
- Chevrolet 3919942
- Mack 650112
- Monroe Vintage 70134
- International AMS650112
- Gabriel 89402
- MACK 650112MT
- Monroe Shocks & Struts 650112
- Monroe Shocks & Struts 70134
- Monroe Shocks & Struts 70136
- Monroe Shocks & Struts 70141
- Monroe Shocks & Struts 70143
- Navistar AMS650112
- Volvo GM Heavy Truck 3919942
- NAPA Shocks 65112
- Gold Shock Absorber 5001317
- Bulldog HD HD12150134
MONROE 65112 Cross Reference
We have 26 alternatives for the 65112 by MONROE:
- MERITOR M89402
- 65112MM
- MAE65112
- NAVISTAR AMS65112
- GABRIEL 89402
- GM 3919942
- MACK 650112MT
- MONROE VINTAGE 70141
- FORD F1HZ18124K
- FORD F1HT18045EA
- FORD F1HT18045EB
- FORD F6HT18045RB
- FORD F1HZ18124C
- FORD F1HT18045RA
- MONROE VINTAGE 70136
- FORD F1HT18045RB
- NEWAY 57365112
- MONROE VINTAGE 70143
- VOLVO / WHITE / GMC 3919942
- MONROE VINTAGE 650112
- CHEVROLET 3919942
- MACK 650112
- MONROE VINTAGE 70134
- INTERNATIONAL AMS650112
- HALDEX SA65112
- BULLDOG HD SHOCKS HD1215-0134
Fits Vehicles
- Ford LNT9000 (1991-1997)
- Ford LN9000 (1991-1997)
- Ford LA8000F (1991-1997)
- Ford LTS9000 (1990-1997)
- Ford LT9000 (1991-1997)
- Ford LS9000 (1990-1997)
- Ford L9000 (1991-1997)
- Ford L8000F (1991-1997)
- Ford LN8000 (1991-1997)
- Ford LN7000 (1991-1997)
