(888) 312-8812 Login SignupMONROE 34767 Gas-Magnum Suspension Shock Absorber
Tap to view 3 more
SHIPS TODAY
MSRP: $86.01
$5899
Save $27.02
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 30
MONROE 34767 Part Description
Manufacturer
Product Description

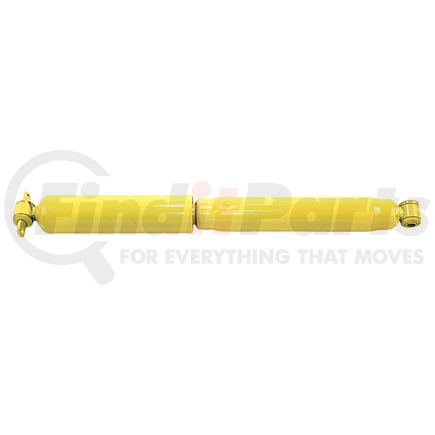

Gas-Magnum Suspension Shock Absorber
Features & Benefits
- DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
- BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
- BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the DifferenceTM Guarantee
MONROE 34767 Specifications
Product Attributes
| Lower Mount Code | LS47 |
| Upper Mount Code | XP7 |
| Dust Shield Included | Yes |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Part Description | Shock Absorber |
| Compressed Length | 15.25 IN |
| Dust Shield Material | Metal |
| Extended Length | 25.25 in |
| Gas Charged | Yes |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL |
| Parts Pack(s) | None |
| Travel Length | 10 in |
| Upper Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
| Compressed Length | 387.3 MM |
| Extended Length | 641.3 MM |
| Travel Length | 254 MM |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Shock Absorber Body End Measuring Point | Center of Loop |
Additional Information
| MSDS Sheet Number | 1164 |
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598050076 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 34767 Part Interchanges
| Brand | Part Number |
|---|---|
| Chevrolet | 12474702, 12474704, 12474705, 12474709, 12474710, 12474711, 12474712, 12474719, 15002528, 15002529, 15150925, 15150926, 15150928, 15150929, 15152942, 15152943, 15152944, 15718076, 15720387, 15727198, 15727199, 15735786, 15741932, 15742099, 15991799, 15991800, 15991801, 15991802, 15991803, 15991804, 22064647, 22064678, 22064679, 22064684, 22064685, 22064838, 22064841, 22065237 |
| GMC | 12474719, 15002529, 15720387, 15727198, 15727199, 15735786, 15991799, 15991800, 15991801, 15991802, 15991803, 15991804, 22064647, 22064678, 22064679, 22064684, 22064685, 22064838, 22064841, 22065237 |
| KYB | 344263, KG5479, 565033, KG54101, 565034, 565087, 565061, 565074, 344262, 344273, KG54100 |
| Gabriel | 58638 |
| Rancho | RS5124, RS55124 |
| NAPA Shocks | 76767 |
MONROE 34767 Fits Vehicles
- GMC Yukon (1992-1997)
- Chevrolet Tahoe (1995-1999)
- Chevrolet Blazer (1992-1994)
MONROE 34767 Cross References
We have 6 alternatives for the 34767 by MONROE:
