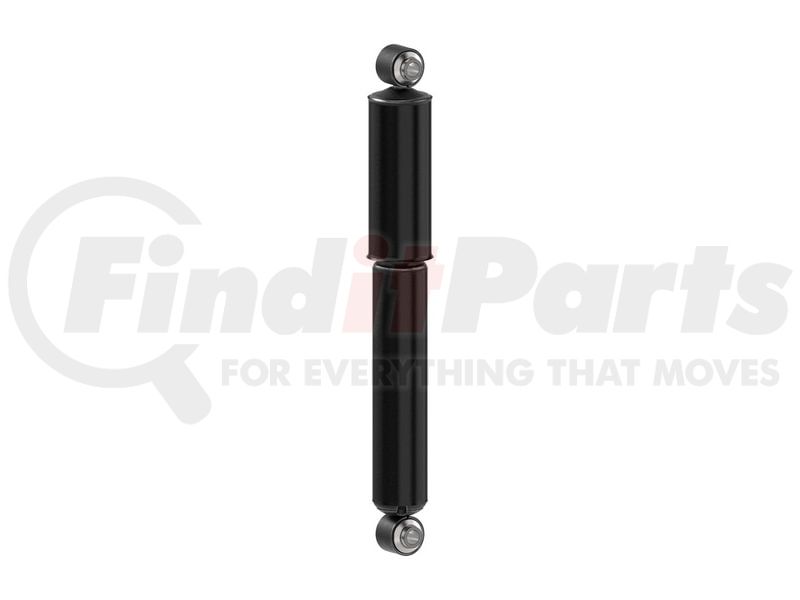

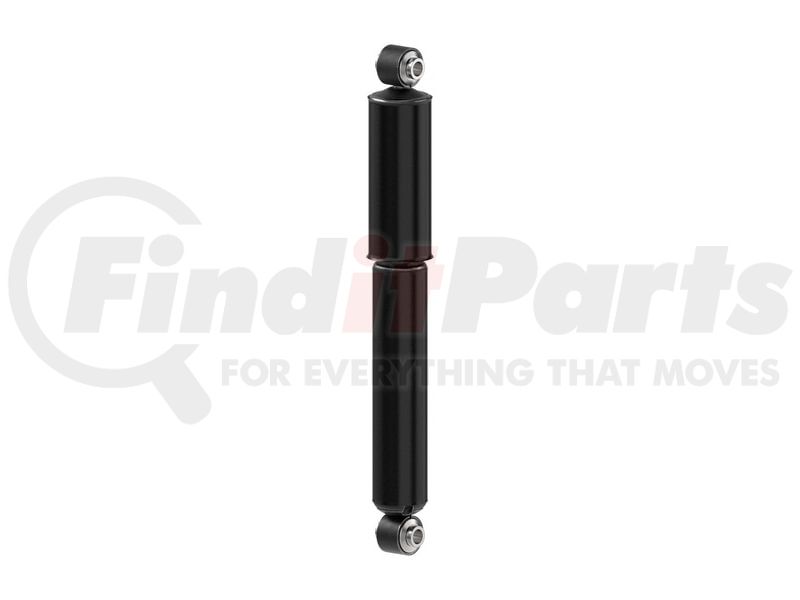

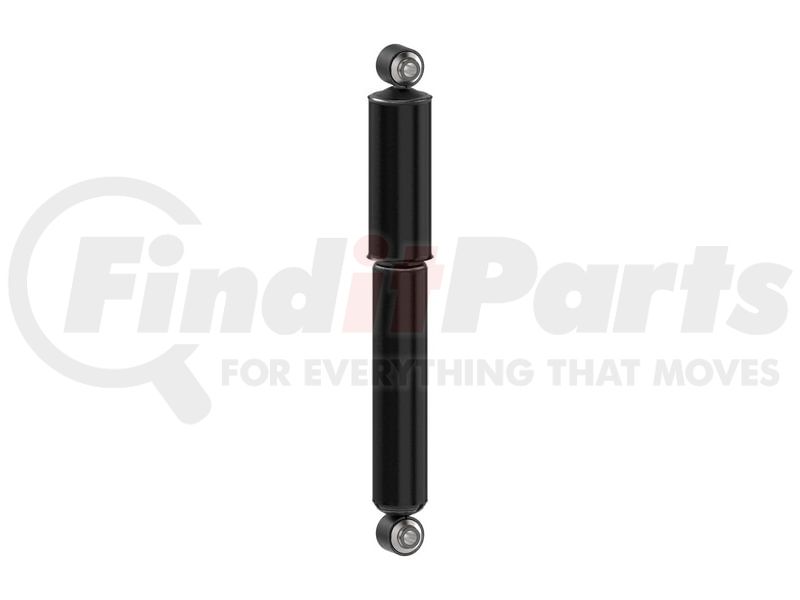

Name: Monroe 65143 Magnum Suspension Shock Absorber
SKU: 65143
Price: 74.99 USD
Availability: InStock

MONROE part description

Product Description

Magnum Suspension Shock Absorber

Features & Benefits

FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 6-8 trucks and buses
CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger 2-3/8-in. reserve tube holds more fluid to improve performance (most applications)
EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/4-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360deg for durability
BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (most applications)
LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration and harshness under most driving conditions
IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
BUY WITH CONFIDENCE -- Comes with Monroe's 90-day Risk Free Ride Offer and Limited Commercial Warranty

Product Attributes

9791	LS53
9789	LS53
Dust Shield Included	Yes
9783	No
9908	No
9792	No
Part Description	Shock Absorber
Internal Construction Type	Twin Tube
Adjustable Damping	No
Color	Black
Finish	Painted
Shock Absorber Bore Size	1-3/4 IN
Foam Cell Design	No
Shaft Diameter	18 MM
Compressed Length	13.2188 IN
Dust Shield Material	Metal
Extended Length	20.2813 in
Gas Charged	Yes
Lower Mount Type	Loop Bushing and Sleeve Mount - 5/8"-16MM Sleeve ID X 2" Sleeve OAL
Parts Pack(s)	None
Travel Length	7.062 in
Upper Mount Type	Loop Bushing and Sleeve Mount - 5/8" Sleeve ID X 2" Sleeve OAL
Compressed Length	335.8 MM
Extended Length	515.1 MM
Travel Length	179.4 MM
Shock Absorber Rod End Measuring Point	Center of Loop
Shock Absorber Body End Measuring Point	Center of Loop
9801	44.5 MM
9801	1.75 IN
Adjustable Damping	No

Additional Information

MSDS Sheet Number	1164
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
UPC	00048598170439
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

MONROE 65143 Cross Reference

We have 20 alternatives for the 65143 by MONROE:

Fits Vehicles

International 8500 (2002-2007)
International Durastar (2013, 2015-2019)
International MV607 (2019)
International 4400 (2002-2008)
International 4400LP (2002-2008)
International 4300LP (2002-2008)
International 4300 (2002-2008, 2016-2019)
International 4200LP (2003-2008)
International 4200 (2002-2010)
International 3000RE (1996-2002, 2005)
International 3400 (1996-2002)
International 3000IC (2000-2002)
International 3000FE (1997-1999)
International 3200 (2002-2011)
International 3000 (1996-2002)
Nexus Wraith (2018-2023)
Nexus Ghost (2014-2024)
IC Corporation CE School Bus (2003-2004, 2010-2021)
