(888) 312-8812 Login SignupRAYBESTOS 580216R Raybestos R-Line Brake Rotor
MSRP: $80.28
$4949
Save $30.79
Limited availability at this price!
In Stock
Get it by Friday, Feb 20
RAYBESTOS 580216R Part Description
Manufacturer
Product Description

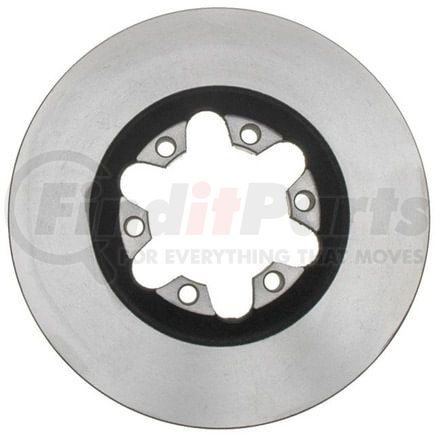

Raybestos R-Line Brake Rotor
Application Summary
2008-2004 Chevrolet Colorado Front, 2008-2004 GMC Canyon Front, 2008-2007 Isuzu i-290 Front, 2006 Isuzu i-280 Front, 2008-2007 Isuzu i-370 Front, 2006 Isuzu i-350 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 580216R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.63 IN |
| Center Hole Diameter | 92.2 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.01 IN |
| Discard Thickness | 25.65 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.42 IN |
| Mounting Bolt Hole Diameter | 10.65 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.063 IN |
| Nominal Thickness | 27 MM |
| Outside Diameter | 11.03 IN |
| Outside Diameter | 280.15 MM |
| Overall Height | 1.573 IN |
| Overall Height | 39.95 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352498385 |
RAYBESTOS 580216R Cross References
RAYBESTOS 580216R Fits Vehicles
- Isuzu i-370 (2007-2008)
- Isuzu i-290 (2007-2008)
- Isuzu i-350 (2006)
- Isuzu i-280 (2006)
- Chevrolet Colorado (2004-2008)
- GMC Canyon (2004-2008)
