(888) 312-8812 Login SignupRAYBESTOS 980113R Raybestos R-Line Brake Rotor
MSRP: $67.60
$3799
Save $29.61
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
RAYBESTOS 980113R Part Description
Manufacturer
Product Description

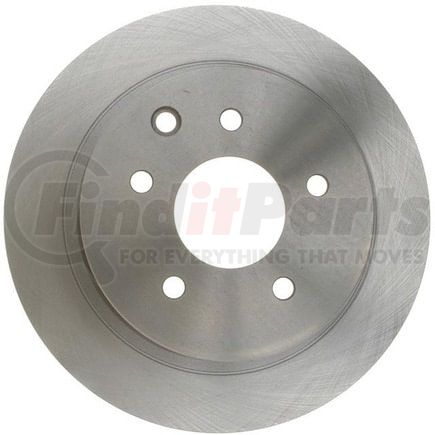

Raybestos R-Line Brake Rotor
Application Summary
2020-2008 Nissan Rogue Rear, 2022-2017 Nissan Rogue Sport Rear, 2023-2011 Nissan LEAF Rear, 2015-2014 Nissan Rogue Select Rear, 2005-2003 INFINITI G35 Rear, 2017-2014 Nissan Juke Rear, 2005-2003 Nissan 350Z Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980113R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.7 IN |
| Center Hole Diameter | 68.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.6 IN |
| Discard Thickness | 14.0 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.5 IN |
| Mounting Bolt Hole Diameter | 12.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.6 IN |
| Nominal Thickness | 16.0 MM |
| Outside Diameter | 11.5 IN |
| Outside Diameter | 292.0 MM |
| Overall Height | 2.4 IN |
| Overall Height | 62.0 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
| Inside Diameter | 8.4 IN |
| Inside Diameter | 213.0 MM |
| Surface Type | Smooth |
| Bearings Included | No |
| Construction | Full Cast |
| Grade Type | Regular |
| Maximum Brake Diameter (Discard) | 291.8 MM |
| Rust Resistant Coating | Yes |
| Weight [cntrc] Kgs | 5.4 |
| Weight [cntrc] Lbs | 12.0 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352495605 |
RAYBESTOS 980113R Cross References
RAYBESTOS 980113R Fits Vehicles
- Renault Koleos (2009-2016, 2018)
- Nissan Qashqai (2017-2019)
- Nissan Rogue Sport (2017-2022)
- Nissan Rogue Select (2014-2015)
- Nissan Juke (2014-2017)
- Nissan LEAF (2011-2025)
- Nissan Rogue (2008-2020)
- Nissan X-Trail (2002-2016, 2018)
- INFINITI G35 (2003-2005)
- Nissan 350Z (2003-2005)
