Name: Reach Cooling 42-10632 KENWORTH T-W SERIES 1993-2007
SKU: 4210632
Price: 1951.99 USD
Availability: InStock

REACH COOLING part description

KENWORTH T/W SERIES 1993-2007

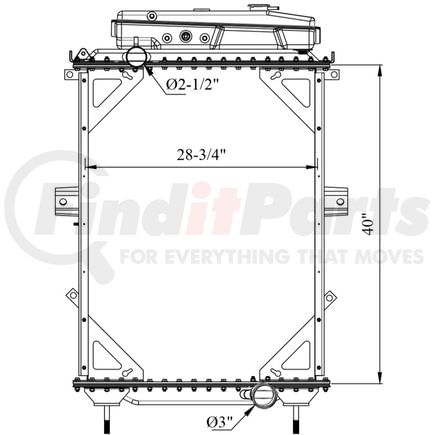

Specifications

Height	40"
Width	28 1/2"
Inlet	2 1/2" UPPER LEFT
Outlet	3" LOWER RIGHT

Make	Kenworth
Model	T Series, W Series

Product Description

KENWORTH T-W SERIES 1993-2007

Application Summary

KENWORTH T-W SERIES 1993-2007

Features & Benefits

Folded fin edges increase stability and heat disbursement properties.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our fin edges are folded for increased stability and heat disbursement properties.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Core Material	Copper
Inlet Location	Upper Left
Core Height	40 IN
Down Flow Or Cross Flow Type	Down Flow
Core Width	28 3/4 IN
Tank Material	Brass
Inlet Diameter	2.5 IN
Outlet Diameter	3 IN
Outlet Location	Lower Right
Core Row Quantity	4
Core Thickness	2 3/8 IN
Core Height	1016 MM
Core Height	1016 MM
Frame Included	No
Core Thickness	60.325 MM
Core Width	730.3 MM
Core Thickness	60.3 MM
Core Width	730.25 MM
Transmission Oil Cooler Included	No
Inlet Diameter	64 MM
Radiator Cap Included	No
Engine Oil Cooler Included	No
Outlet Diameter	76 MM
Inlet Diameter	63.5 mm
Outlet Diameter	76.2 MM

Additional Information

Country of Origin (Primary)	CN
Warranty Special	12 Months
UPC	06941099907228
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10632 Cross Reference

We have 47 alternatives for the 42-10632 by REACH COOLING:

Fits Vehicles

Kenworth T400 (1993-1996)
Kenworth T270 (2009)
Kenworth W900 (1982, 1984, 1986, 1995, 1997, 2004)
Kenworth T800 (1993-2007)
Kenworth T600A (1988, 1991-2007)
Kenworth T2000 (1999, 2002)
Kenworth T300 (1996, 1998-1999)

Founded in 1999, Reach Cooling® is a worldwide leader in the manufacture and distribution of aftermarket cooling products for light, medium, and heavy duty truck applications. Its fasting-growing division is within its medium and heavy duty truck part sector, offering more than 30 HD condensers, more than 50 HD charge air coolers, and more than 100 HD radiators. All these products are manufactured to meet the highest OE standards to fit some of the most popular US truck makes, including Peterbilt, Mack, International, Isuzu, GMC, Ford, and Freightliner. Headquartered in Miami, Florida, Reach Cooling is fully committed to providing customers with only the best products, most competitive prices, and exceptional service.
