Name: Reach Cooling 42-10555 INTERNATIONAL 4300-4400-7300-DURASTAR 4200 2011-2014
SKU: 4210555
Price: 1317.49 USD
Availability: InStock

REACH COOLING part description

INTERNATIONAL 4300/4400/7300/DURASTAR 4200 2011-2014

Make	International
Model	4300, 4400, 7300, Durastar 4200
Year	2011, 2012, 2013, 2014

Product Description

INTERNATIONAL 4300-4400-7300-DURASTAR 4200 2011-2014

Application Summary

INTERNATIONAL 4300-4400-7300-DURASTAR 4200 2011-2014

Features & Benefits

Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Folded fin edges increase stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Our fin edges are folded for increased stability and heat disbursement properties.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

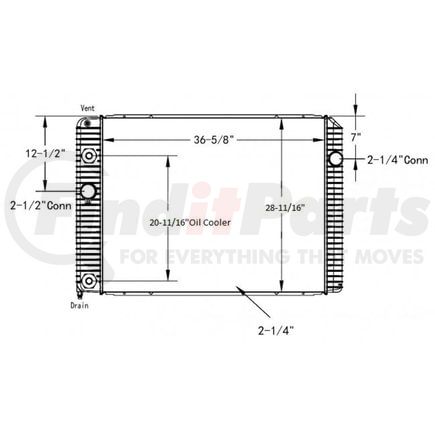

Product Attributes

Outlet Diameter	2.5 IN
Core Height	36 5/8 IN
Transmission Oil Cooler Type	20-11/16 In. Bottom tank
Transmission Oil Cooler Distance between Fittings	20 11/16 IN
Inlet Diameter	2.25 IN
Core Row Quantity	2
Core Thickness	2 1/4 IN
Frame Included	No
Core Width	28 11/16 IN
Core Material	Aluminum
Tank Material	Plastic PA66-GF30
Down Flow Or Cross Flow Type	Cross Flow
Core Height	930.275 MM
Core Width	728.649 MM
Inlet Diameter	57.15 mm
Core Height	930.3 MM
Outlet Diameter	63.5 MM
Transmission Oil Cooler Included	Yes
Outlet Diameter	64 MM
Core Thickness	57.2 MM
Transmission Oil Cooler Distance between Fittings	525.5 MM
Inlet Diameter	57 MM
Transmission Oil Cooler Distance between Fittings	525.449 MM
Core Width	728.7 MM
Engine Oil Cooler Included	No
Outlet Location	Center Left
Core Thickness	57.15 MM
Inlet Location	Top Right
Radiator Cap Included	No

Additional Information

Warranty Special	12 Months
Country of Origin (Primary)	CN
UPC	06941099904036
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10555 Cross Reference

We have 11 alternatives for the 42-10555 by REACH COOLING:

Fits Vehicles

International WorkStar 7400 (2015)
International WorkStar 7300 (2015)
International 7400 (2011-2015)
International 7300 (2011-2015)
International Durastar (2013, 2015)
International 4400LP (2011-2015)
International 4400 (2011-2015)
International 4300LP (2011-2015)
International 4300 (2011-2015)
International 4100 (2011-2012)
IC Corporation CE Commercial (2011-2013)
