Name: Reach Cooling 42-10528 FREIGHTLINER-STERLING CORONADO-W125 2013
SKU: 4210528
Price: 955.49 USD
Availability: InStock

REACH COOLING part description

FREIGHTLINER/STERLING CORONADO/W125 2013

Make	Freightliner
Model	Coronado, W125
Year	2013

Product Description

FREIGHTLINER-STERLING CORONADO-W125 2013

Application Summary

FREIGHTLINER-STERLING CORONADO-W125 2013

Features & Benefits

Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our fin edges are folded for increased stability and heat disbursement properties.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Folded fin edges increase stability and heat disbursement properties.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

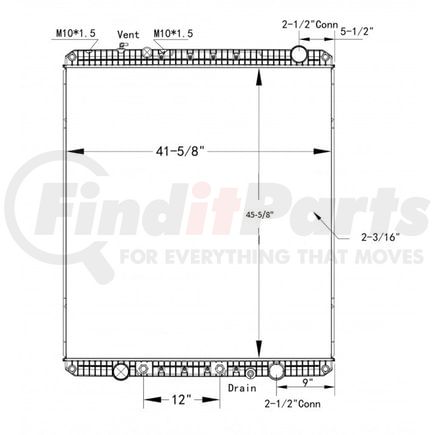

Product Attributes

Core Height	45.625 IN
Inlet Diameter	2.5 IN
Core Thickness	2.187 IN
Core Width	41 5/8 IN
Outlet Diameter	2.5 IN
Transmission Oil Cooler Distance between Fittings	12 IN
Core Thickness	55.549 MM
Frame Included	No
Outlet Diameter	63.5 MM
Core Height	1159 MM
Core Thickness	55.56 MM
Outlet Diameter	64 MM
Core Height	1158.875 MM
Core Width	1057.3 MM
Transmission Oil Cooler Included	Yes
Transmission Oil Cooler Distance between Fittings	304.80 MM
Down Flow Or Cross Flow Type	Down Flow
Core Width	1057.275 MM
Fitting Connection Type	Pipe connect
Outlet Location	Lower Right
Inlet Diameter	64 MM
Engine Oil Cooler Included	No
Inlet Diameter	63.5 mm
Transmission Oil Cooler Distance between Fittings	304.8 MM
Inlet Location	Upper Right
Radiator Cap Included	No

Additional Information

Country of Origin (Primary)	CN
Warranty Special	12 Months
UPC	06941099903824
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10528 Cross Reference

We have 20 alternatives for the 42-10528 by REACH COOLING:

Fits Vehicles

Freightliner Coronado (2013)

Founded in 1999, Reach Cooling® is a worldwide leader in the manufacture and distribution of aftermarket cooling products for light, medium, and heavy duty truck applications. Its fasting-growing division is within its medium and heavy duty truck part sector, offering more than 30 HD condensers, more than 50 HD charge air coolers, and more than 100 HD radiators. All these products are manufactured to meet the highest OE standards to fit some of the most popular US truck makes, including Peterbilt, Mack, International, Isuzu, GMC, Ford, and Freightliner. Headquartered in Miami, Florida, Reach Cooling is fully committed to providing customers with only the best products, most competitive prices, and exceptional service.
