Name: Reach Cooling 42-10525 INTERNADIONAL 4400DURASTAR 2011-2017
SKU: 4210525
Price: 965.99 USD
Availability: InStock

REACH COOLING part description

INTERNADIONAL 4400DURASTAR 2011-2017

Make	International
Model	4400 Durastar
Year	2011, 2012, 2013, 2014, 2015, 2016, 2017

Product Description

INTERNADIONAL 4400DURASTAR 2011-2017

Application Summary

INTERNADIONAL 4400DURASTAR 2011-2017

Features & Benefits

Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Folded fin edges increase stability and heat disbursement properties.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Our fin edges are folded for increased stability and heat disbursement properties.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

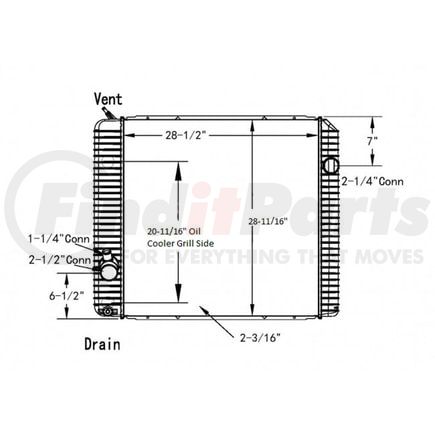

Product Attributes

Transmission Oil Cooler Type	20 11/16 In. Grill Side
Core Width	28 11/16 IN
Inlet Diameter	2.25 IN
Core Row Quantity	2
Down Flow Or Cross Flow Type	Cross Flow
Core Thickness	2.187 IN
Core Material	Aluminum
Tank Material	Plastic PA66-GF30
Frame Included	No
Transmission Oil Cooler Distance between Fittings	20 11/16 IN
Outlet Diameter	2.5 IN
Core Height	28.5 IN
Core Thickness	55.549 MM
Outlet Header Length	741.349 mm
Inlet Header Width	3 5/16 IN
Outlet Header Width	84.1 MM
Core Width	728.649 MM
Inlet Diameter	57.15 mm
Outlet Location	Bottom Left
Outlet Diameter	64 MM
Outlet Diameter	63.5 MM
Core Height	724 MM
Core Width	728.7 MM
Inlet Header Length	29 3/16 IN
Outlet Header Length	741.4 MM
Transmission Oil Cooler Included	Yes
Inlet Header Width	84.1 MM
Core Thickness	55.56 MM
Outlet Header Width	3.312 IN
Transmission Oil Cooler Distance between Fittings	525.5 MM
Engine Oil Cooler Included	No
Core Height	723.9 MM
Inlet Header Length	741.4 MM
Inlet Diameter	57 MM
Outlet Header Length	29.187 IN
Radiator Cap Included	Not Needed
Inlet Header Length	741.349 mm
Inlet Header Width	84.124 mm
Outlet Header Width	84.124 mm
Transmission Oil Cooler Distance between Fittings	525.449 MM
Inlet Location	Top Right

Additional Information

Warranty Special	12 Months
Country of Origin (Primary)	CN
UPC	06941099903794
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10525 Cross Reference

We have 11 alternatives for the 42-10525 by REACH COOLING:

Fits Vehicles

International 8500 TranStar (2008-2011)
International 4300LP (2008-2011)
International 4300 (2008-2011)
International 4400LP (2008-2011)
International 4400 (2008-2011)
