Name: Reach Cooling 42-10488 INTERNATIONAL2010 - 2011 WorkStar 7300-7700 Series
SKU: 4210488
Price: 964.49 USD
Availability: InStock

REACH COOLING part description

INTERNATIONAL2010 - 2011 WorkStar 7300-7700 Series

Make	International
Model	WorkStar 7300, WorkStar 7400, WorkStar 7500, WorkStar 7600, WorkStar 7700
Year	2010, 2011

Product Description

INTERNATIONAL2010 - 2011 WorkStar 7300-7700 Series

Application Summary

INTERNATIONAL2010 - 2011 WorkStar 7300-7700 Series

Features & Benefits

Folded fin edges increase stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our fin edges are folded for increased stability and heat disbursement properties.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

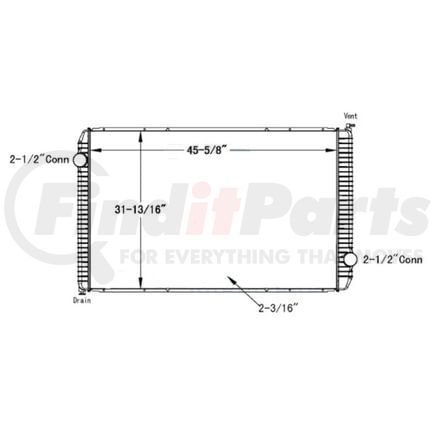

Product Attributes

Outlet Diameter	2.5 IN
Core Thickness	2 3/16 IN
Inlet Diameter	2 1/2 IN
Core Height	45 5/8 IN
Tank Material	Plastic
Frame Included	No
Core Row Quantity	2
Down Flow Or Cross Flow Type	Cross Flow
Core Width	31.812 IN
Core Material	Aluminum
Core Height	1158.875 MM
Outlet Diameter	63.5 MM
Core Height	1158.9 MM
Inlet Diameter	63.5 MM
Inlet Diameter	63.5 mm
Core Thickness	55.6 MM
Inlet Location	Lower Right
Core Thickness	55.549 MM
Fitting Connection Type	Pipe connect
Transmission Oil Cooler Included	No
Radiator Cap Included	No
Core Width	808 MM
Core Width	808.024 MM
Outlet Location	Lower Left
Engine Oil Cooler Included	No
Outlet Diameter	64 MM

Additional Information

Warranty Special	12 Months
Country of Origin (Primary)	CN
UPC	06941099904043
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10488 Cross Reference

We have 35 alternatives for the 42-10488 by REACH COOLING:

Fits Vehicles

International 7600 (2009-2013)
International 7400 (2008-2013)
International 7300 (2008-2013)
International WorkStar 7700 (2008-2012)
International WorkStar 7600 (2008-2013)
