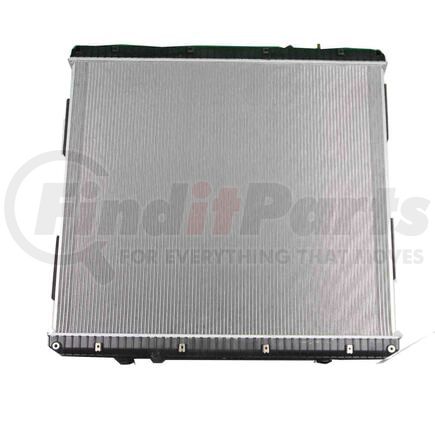

Name: Reach Cooling 42-10506 FREIGHTLINER-STERLING 114SD-W95 2012-2015
SKU: 4210506
Price: 887.99 USD
Availability: InStock

REACH COOLING part description

FREIGHTLINER/STERLING 114SD/W95 2012-2015 W/O FRAMES, NO TOC/EOC Compare

Make	Freightliner
Model	114SD, W95
Year	2012, 2013, 2014, 2015

Product Description

FREIGHTLINER-STERLING 114SD-W95 2012-2015

Application Summary

FREIGHTLINER-STERLING 114SD-W95 2012-2015

Features & Benefits

Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Our fin edges are folded for increased stability and heat disbursement properties.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Folded fin edges increase stability and heat disbursement properties.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Core Thickness	2 3/16 IN
Inlet Diameter	2.562 IN
Core Height	35 3/4 IN
Transmission Oil Cooler Distance between Fittings	12 IN
Outlet Diameter	2 1/2 IN
Core Width	40 5/8 IN
Core Height	908.05 MM
Inlet Diameter	65.074 mm
Outlet Diameter	63.5 MM
Down Flow Or Cross Flow Type	Down Flow
Core Thickness	55.549 MM
Core Thickness	55.6 MM
Core Width	1031.9 MM
Engine Oil Cooler Included	No
Fitting Connection Type	Pipe connect
Outlet Diameter	63.5 MM
Outlet Location	Lower Right
Transmission Oil Cooler Included	Yes
Inlet Diameter	64.5 MM
Radiator Cap Included	No
Transmission Oil Cooler Distance between Fittings	304.8 MM
Core Height	908.1 MM
Inlet Location	Upper Right
Transmission Oil Cooler Distance between Fittings	304.80 MM
Core Width	1031.875 MM
Frame Included	No

Additional Information

Country of Origin (Primary)	CN
Warranty Special	12 Months
UPC	06941099903633
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10506 Cross Reference

We have 9 alternatives for the 42-10506 by REACH COOLING:

Fits Vehicles

Freightliner 114SD (2012-2015)
