Name: Reach Cooling 42-10436 HINO 145-165-185 05-07
SKU: 4210436
Price: 517.49 USD
Availability: InStock

REACH COOLING part description

HINO 145/165/185 05-07 WITH OIL COOLER Compare

Make	Hino
Model	145,165,185
Year	2005, 2006, 2007

Product Description

HINO 145-165-185 05-07

Application Summary

HINO 145-165-185 05-07

Features & Benefits

Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Our fin edges are folded for increased stability and heat disbursement properties.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Folded fin edges increase stability and heat disbursement properties.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.

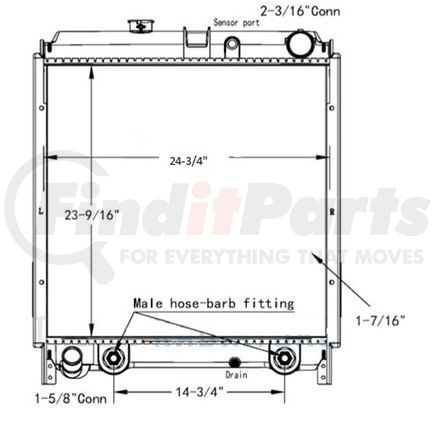

Product Attributes

Transmission Oil Cooler Distance between Fittings	14 3/4 IN
Outlet Diameter	1 5/8 IN
Inlet Diameter	2-3/16 IN
Core Thickness	1-7/16 IN
Transmission Oil Cooler Fitting Type	Hose Barb
Core Width	24-3/4 IN
Core Height	23 9/16 IN
Transmission Oil Cooler Fitting Gender	Male
Core Material	Aluminum
Down Flow Or Cross Flow Type	Down Flow
Core Width	628.8 MM
Frame Included	No
Core Thickness	36 MM
Inlet Diameter	55 MM
Inlet Location	Top Right
Radiator Cap Included	No
Core Row Quantity	1
Engine Oil Cooler Included	No
Outlet Location	Bottom Left
Transmission Oil Cooler Included	Yes
Tank Material	Plastic

Additional Information

Warranty Special	12 Months
Country of Origin (Primary)	CN
UPC	06941099904579
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10436 Cross Reference

We have 20 alternatives for the 42-10436 by REACH COOLING:

Fits Vehicles

Hino 165 (2005-2007)
Hino 185 (2005-2007)
Hino 145 (2005-2007)
