Name: Reach Cooling 42-10431 GMC LOW CAB FORWARD- T series 97-02
SKU: 4210431
Price: 636.99 USD
Availability: InStock

REACH COOLING part description

GMC LOW CAB FORWARD/ T series 97-02 W/ OIL COOLER Compare

Make	GMC
Model	T
Year	1997, 1998, 1999, 2000, 2001, 2002

Product Description

GMC LOW CAB FORWARD- T series 97-02

Application Summary

1997-2002 Chevrolet T6500/T7500 / GMC T6500/T7500; 2002 Isuzu FTR

Features & Benefits

Folded fin edges increase stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Our fin edges are folded for increased stability and heat disbursement properties.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.

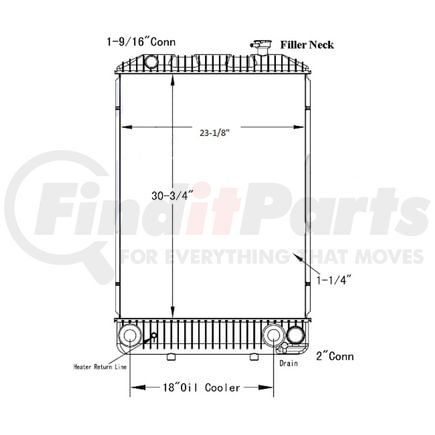

Product Attributes

Core Height	30-3/4 IN
Core Width	23-1/8 IN
Outlet Diameter	1 9/16 IN
Core Thickness	1 1/4 IN
Transmission Oil Cooler Distance between Fittings	18 IN
Inlet Diameter	2 IN
Core Material	Aluminum
Outlet Location	Bottom Right
Down Flow Or Cross Flow Type	Down Flow
Core Height	781 MM
Transmission Oil Cooler Distance between Fittings	457.20 MM
Core Row Quantity	1
Engine Oil Cooler Included	No
Core Width	587 MM
Transmission Oil Cooler Included	Yes
Radiator Cap Included	No
Tank Material	Plastic
Inlet Diameter	40 MM
Inlet Location	Top Left
Frame Included	No

Additional Information

Country of Origin (Primary)	CN
Warranty Special	12 Months
UPC	06941099904470
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10431 Cross Reference

We have 22 alternatives for the 42-10431 by REACH COOLING:

Fits Vehicles

Isuzu FVR (1999-2002)
Isuzu FTR (1999-2004)
GMC T7500 (1997-2002)
GMC T6500 (1997-2002)
Chevrolet T7500 (1997-2002)
Chevrolet T6500 (1997-2002)
