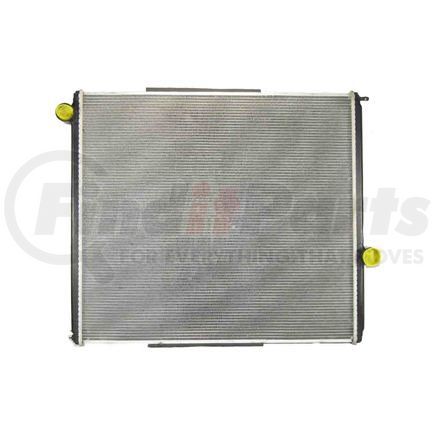

Name: Reach Cooling 42-10050 FORD-STERLING AT-LT9513-9522 SERIES 60 SERIES DETROIT 11.1L- C12 CAT- CAT 3406E-
SKU: 4210050
Price: 767.99 USD
Availability: InStock

REACH COOLING part description

FORD/STERLING AT/LT9513,9522 SERIES 60 SERIES DETROIT 11.1L, C12 CAT, CAT 3406E, N14 CUMMINS

Specifications

Height	37 3/8 (Inches)
Width	33 3/4"
Thickness	1 7/8 (Inches)
Row	2
Inlet	2 1/2 (Inches)
Outlet	2 1/2 (Inches)
Core Material	Aluminum
Tank Material	Plastic
TOC	NONE (Inches)
EOC	NONE (Inches)

Make	Ford
Model	Sterling ST9500, AT9522
Year	1996, 1997, 1998

Product Description

FORD-STERLING AT-LT9513-9522 SERIES 60 SERIES DETROIT 11.1L- C12 CAT- CAT 3406E-

Application Summary

FORD-STERLING AT-LT9513-9522 SERIES 60 SERIES DETROIT 11.1L- C12 CAT- CAT 3406E- N14 CUMMINS

Features & Benefits

Our fin edges are folded for increased stability and heat disbursement properties.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Folded fin edges increase stability and heat disbursement properties.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Core Height	37.375 IN
Inlet Header Length	895 MM
Core Width	33 3/4 IN
Outlet Diameter	63.5 MM
Down Flow Or Cross Flow Type	Cross Flow
Outlet Header Width	76.3 MM
Core Thickness	48 MM
Core Material	Aluminum
Inlet Diameter	63.5 MM
Core Row Quantity	2
Frame Included	Yes
Inlet Header Width	3 IN
Outlet Header Length	895.4 MM
Transmission Oil Cooler Included	No
Engine Oil Cooler Included	No
Tank Material	Plastic
Outlet Diameter	2 1/2 IN
Inlet Diameter	2 1/2 IN
Core Thickness	1.875 IN
Core Thickness	47.625 MM
Inlet Header Width	76.2 mm
Outlet Diameter	63.5 MM
Outlet Location	Lower Right
Radiator Cap Included	No
Outlet Header Width	76.2 mm
Core Width	857.3 MM
Outlet Header Length	35 1/4 IN
Outlet Header Width	3 IN
Inlet Location	Upper Left
Core Height	949.325 MM
Core Width	857.25 MM
Outlet Header Length	895.35 mm
Core Height	949 MM
Inlet Header Length	35.25 IN
Inlet Header Width	76.3 MM
Inlet Header Length	895.35 mm
Inlet Diameter	63.5 mm

Additional Information

Warranty Special	12 Months
Country of Origin (Primary)	CN
UPC	06949521786786
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10050 Cross Reference

We have 123 alternatives for the 42-10050 by REACH COOLING:

Fits Vehicles

Sterling Truck ST9500 (1999-2002)
Ford LT9522 (1997-1998)
Ford LT9513 (1997-1998)
Ford AT9522 (1998)
Ford AT9513 (1996-1998)
Sterling Truck LT9522 (1999-2001)
Sterling Truck LT9513 (1999)
Sterling Truck L9500 (2005-2010)
Sterling Truck LT9500 (1999-2003)
Sterling Truck AT9500 (1999-2003)
Sterling Truck L8513 (1999)
Sterling Truck A9500 (2003-2004)
