Name: Reach Cooling 42-10390 Radiator
SKU: 4210390
Price: 963.99 USD
Availability: InStock

REACH COOLING part description

FREIGHTLINER/STERLING ACTERRA/AT9500/AT9513/LT8500/9000/9500 02-14

Make	Freightliner, Sterling
Model	Acterra, AT9500, AT9513, LT8500, 9000, 9500
Year	2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014

Product Description

Radiator

Features & Benefits

Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Our fin edges are folded for increased stability and heat disbursement properties.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Folded fin edges increase stability and heat disbursement properties.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.

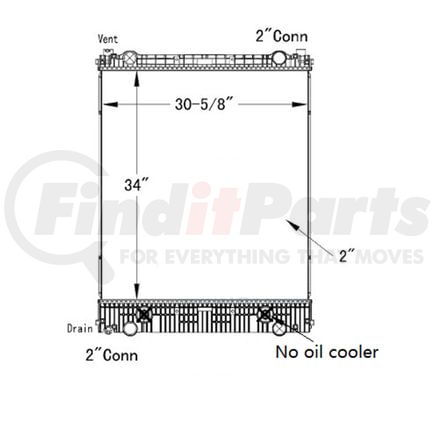

Product Attributes

Core Height	34 IN
Core Thickness	2 1/16 IN
Inlet Diameter	2 IN
Outlet Diameter	2 IN
Core Width	30 5/8 IN
Transmission Oil Cooler Distance between Fittings	18 IN
Tank Material	PA66-GF30
Core Height	864 MM
Transmission Oil Cooler Distance between Fittings	457 MM
Inlet Diameter	51 MM
Frame Included	No
Outlet Location	Bottom Left
Outlet Diameter	51 MM
Core Material	Aluminum
Transmission Oil Cooler Included	Yes
Inlet Location	Top Right
Radiator Cap Included	No
Engine Oil Cooler Included	No
Down Flow Or Cross Flow Type	Down Flow

Part Interchanges

REACH COOLING 42-10390 Cross Reference

We have 50 alternatives for the 42-10390 by REACH COOLING:

Fits Vehicles

Freightliner Business Class M2 (2008-2012)
Freightliner M2 112 (2009-2013)
Freightliner M2 106 (2008-2013)
Sterling Truck Acterra (2008-2010)

Founded in 1999, Reach Cooling® is a worldwide leader in the manufacture and distribution of aftermarket cooling products for light, medium, and heavy duty truck applications. Its fasting-growing division is within its medium and heavy duty truck part sector, offering more than 30 HD condensers, more than 50 HD charge air coolers, and more than 100 HD radiators. All these products are manufactured to meet the highest OE standards to fit some of the most popular US truck makes, including Peterbilt, Mack, International, Isuzu, GMC, Ford, and Freightliner. Headquartered in Miami, Florida, Reach Cooling is fully committed to providing customers with only the best products, most competitive prices, and exceptional service.
