Name: Reach Cooling 42-10321 1999-2007 Mack MR Series W-T PTO 39.00" x 26.25" x 2.25" Inlet :
SKU: 4210321
Price: 1891.49 USD
Availability: InStock

REACH COOLING part description

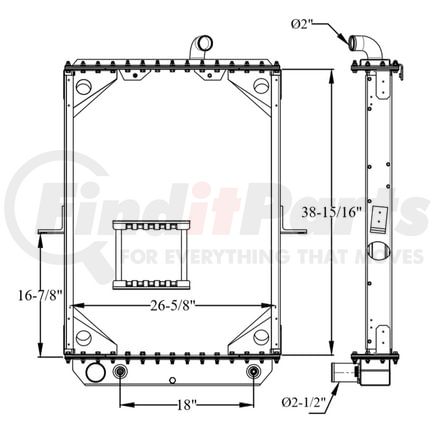

1999-2007 Mack MR Series W/T PTO 39.00" x 26.25" x 2.25" Inlet : 2.00" Top RightOutlet : 2.50" Bottom Left Brackets 17" from Bottom Header, PTO box UP 1/2" tube on 7/16" centers, 4 row core

Specifications

Height	39
Width	26.25
Thickness	2.25
Row	4
Inlet	2
Outlet	2.5
TOC	18

Make	Mack
Model	MR, MRU

Product Description

1999-2007 Mack MR Series W-T PTO 39.00" x 26.25" x 2.25" Inlet :

Application Summary

1999-2007 Mack MR Series W-T PTO 39.00" x 26.25" x 2.25" Inlet : 2.00" Top RightOutlet : 2.50" Bottom Left Brackets 17" from Bottom Header- PTO box UP 1-2" tube on 7-16" centers- 4 row core

Features & Benefits

Folded fin edges increase stability and heat disbursement properties.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our fin edges are folded for increased stability and heat disbursement properties.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Transmission Oil Cooler Distance between Fittings	18 IN
Inlet Diameter	2 IN
Outlet Diameter	2 1/2 IN
Core Material	Copper
Frame Included	Yes
Down Flow Or Cross Flow Type	Down Flow
Core Height	38.937 IN
Core Thickness	2 1/4 IN
Core Width	26.625 IN
Tank Material	Brass
Core Row Quantity	4
Transmission Oil Cooler Type	18 In. Bottom tank
Transmission Oil Cooler Included	Yes
Core Thickness	57.15 MM
Core Width	676.275 MM
Crankbox/PTO Hole Dimensions	177.8 x 193.7 mm
Transmission Oil Cooler Distance between Fittings	457.20 MM
Inlet Diameter	51 MM
Core Height	988.999 MM
Outlet Diameter	63.5 MM
Core Thickness	57.2 MM
Core Width	676 MM
Transmission Oil Cooler Distance between Fittings	457.2 MM
Outlet Diameter	63.5 MM
Crankbox/pto Hole Dimensions	7 x 7 5/8 in
Inlet Diameter	50.8 mm
Outlet Location	Bottom Left
Core Height	989 MM
Radiator Cap Included	No
Inlet Location	Center Top
Engine Oil Cooler Included	No

Additional Information

Country of Origin (Primary)	CN
Warranty Special	12 Months
UPC	06949521700591
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10321 Cross Reference

We have 55 alternatives for the 42-10321 by REACH COOLING:

Fits Vehicles

Mack MR (1996-2007)
