Name: Reach Cooling 42-10300 Radiator
SKU: 4210300
Price: 626.49 USD
Availability: InStock

REACH COOLING part description

Application Summary: Model: Prostar (2011-04)

Features & Benefits

Includes: One (1) Radiator
New Aftermarket
Core Material: Aluminum
Tank Material: Plastic
Thickness: 2 1/4"

Make	International
Model	Prostar
Year	2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011

Product Description

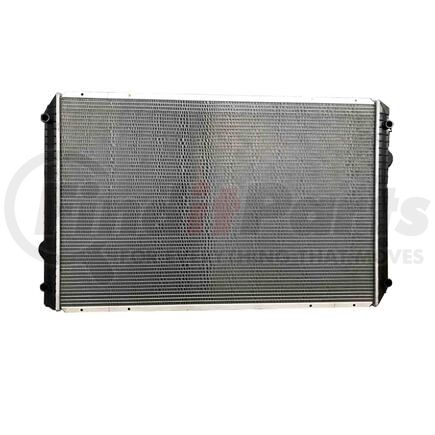

Radiator

Application Summary

2009 International LoneStar; 04-07 International 8600 SBA/ 9400i SBA/ 9900i/ 9900ix; 04-09/11 International 9200i SBA; 08-10 International 5900i SBA; 08-14 International ProStar

Features & Benefits

Our fin edges are folded for increased stability and heat disbursement properties.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Folded fin edges increase stability and heat disbursement properties.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Core Width	27 1/2 IN
Outlet Diameter	2.5 IN
Core Thickness	2.25 IN
Down Flow Or Cross Flow Type	Cross Flow
Core Height	40.125 IN
Core Material	Aluminum
Tank Material	Plastic
Frame Included	No
Core Row Quantity	2
Inlet Diameter	2 1/2 IN
Core Thickness	56 MM
Engine Oil Cooler Included	No
Inlet Location	Upper Left
Inlet Diameter	63.5 mm
Core Height	1091 MM
Inlet Diameter	63.5 MM
Radiator Cap Included	No
Transmission Oil Cooler Included	No
Core Width	698.5 MM
Core Width	698.5 MM
Core Height	1019.175 MM
Core Thickness	57.15 MM
Outlet Diameter	63.5 MM
Outlet Location	Lower Right
Outlet Diameter	64 MM

Additional Information

Warranty Special	12 Months
Country of Origin (Primary)	CN
UPC	06949521791780
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10300 Cross Reference

We have 104 alternatives for the 42-10300 by REACH COOLING:

Fits Vehicles

International 9900ix (2004-2007)
International 9900i (2004-2009)
International LoneStar (2009)
International ProStar (2008-2014)
International 5900i (2008-2010)
International 9400i SBA (2004-2007)
International 9200i SBA (2004-2011)
International 8600 SBA (2004-2007)
