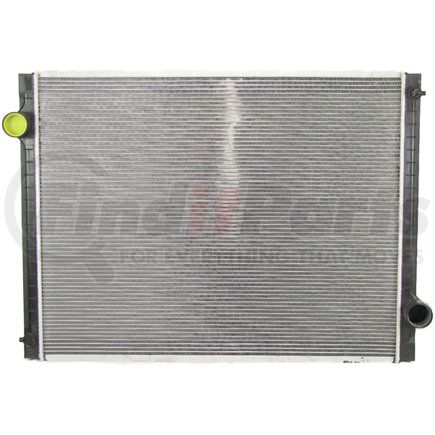

Name: Reach Cooling 42-10186 INTERNATIONAL - NAVISTAR 8100-9100-9200-9400-9900
SKU: 4210186
Price: 669.99 USD
Availability: InStock

REACH COOLING part description

Core Material	Aluminum
Tank Material	Plastic
Thickness	2 3/16"

Application Summary: Application Summary: Models: 5000 SFA Series (1994+), 8100 Series (1994+)

Features & Benefits

Built with an aluminum core material to ensure improved heat dissipation and longevity
Features plastic tank material providing strength while being lightweight for easier handling
Designed to fit International Navistar models 8100, 9100, 9200, 9400, and 9900 efficiently
Includes an integrated transmission oil cooler that maintains optimal transmission temperatures
Constructed to withstand various conditions, ensuring reliable performance in heavy-duty applications

Make	International
Model	5000 SFA, 8100
Year	1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019

Product Description

INTERNATIONAL - NAVISTAR 8100-9100-9200-9400-9900

Application Summary

INTERNATIONAL - NAVISTAR 8100-9100-9200-9400-9900

Features & Benefits

Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Our fin edges are folded for increased stability and heat disbursement properties.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Folded fin edges increase stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Built with an aluminum core material to ensure improved heat dissipation and longevity
Features plastic tank material providing strength while being lightweight for easier handling
Designed to fit International Navistar models 8100, 9100, 9200, 9400, and 9900 efficiently
Includes an integrated transmission oil cooler that maintains optimal transmission temperatures
Constructed to withstand various conditions, ensuring reliable performance in heavy-duty applications

Reach Cooling Radiator

Overheating can significantly impact the longevity and performance of your International Navistar truck engine. The Reach Cooling Radiator offers a robust solution to this critical problem. Specifically designed for International Navistar models from the 8100 to 9900 series, this radiator helps maintain optimal engine temperature, especially under heavy loads and extreme operating conditions. This is achieved through its high-performance aluminum core, which boasts superior heat conductivity compared to traditional copper radiators. This efficient core design maximizes heat dissipation, effectively transferring engine heat away from the block and into the atmosphere, preventing overheating and safeguarding your engine. Additionally, this Reach Cooling part incorporates durable plastic tanks that resist corrosion, cracking, and warping, common problems encountered with older metal tanks. These plastic tanks are specifically engineered to withstand the demanding vibrations and temperature fluctuations associated with heavy-duty truck operation. While a radiator cap is not included and must be purchased separately, the Reach Cooling 42-10186 provides a reliable and cost-effective solution for preventing engine overheating and ensuring optimal performance in your International Navistar truck.

Product Attributes

Inlet Diameter	63 MM
Down Flow Or Cross Flow Type	Cross Flow
Core Height	904.9 MM
Outlet Diameter	63.5 MM
Core Width	27 7/8 IN
Outlet Header Length	29 1/8 IN
Transmission Oil Cooler Included	No
Inlet Header Length	29 1/8 IN
Outlet Header Width	76.7 MM
Core Row Quantity	2
Core Thickness	2 3/16 IN
Inlet Header Width	3 IN
Tank Material	Plastic
Frame Included	No
Core Material	Aluminum
Engine Oil Cooler Included	No
Outlet Diameter	2 1/2 IN
Core Height	35 5/8 IN
Inlet Diameter	2.5 IN
Outlet Header Length	739.8 MM
Core Width	708.025 MM
Inlet Location	Upper Left
Inlet Diameter	63.5 mm
Radiator Cap Included	No
Core Height	904.875 MM
Inlet Header Length	739.8 MM
Outlet Header Length	739.775 mm
Inlet Header Width	76.7 MM
Outlet Header Width	3 IN
Inlet Header Length	739.775 mm
Core Width	708 MM
Core Thickness	55.549 MM
Inlet Header Width	76.2 mm
Core Thickness	55.6 MM
Outlet Location	Lower Right
Outlet Diameter	63.5 MM
Outlet Header Width	76.2 mm

Additional Information

Warranty Special	12 Months
Country of Origin (Primary)	CN
UPC	06949521782559
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10186 Cross Reference

We have 71 alternatives for the 42-10186 by REACH COOLING:

Fits Vehicles

International 9800 SBA (1997-1998)
International 5000 (1995-1999)
International 8100 (1994-2003)
International 4900 (1993, 1995)
International 4600UH (1990)
International Genesis RE (2000-2002)
