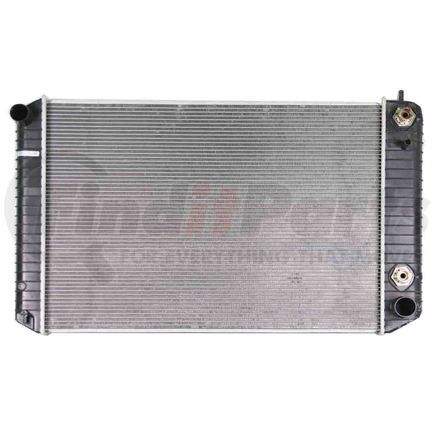

Name: Reach Cooling 42-10027 Radiator
SKU: 4210027
Price: 778.99 USD
Availability: InStock

REACH COOLING part description

CHEVY / GM KODIAK, TOPKICK

Specifications

Height	35 7/8 (Inches)
Width	26 5/8 (Inches)
Thickness	1 1/4 (Inches)
Row	1
Inlet	2"
Outlet	2 1/4 (Inches)
Core Material	Aluminum
Tank Material	Plastic
EOC	NONE (Inches)

Make	Chevrolet, GMC
Model	Kodiak, Topkick
Year	Various

Product Description

Radiator

Application Summary

91-92 Chevrolet C60 Kodiak/ C70 Kodiak/ GMC C6000 Topkick/ C7000 Topkick

Features & Benefits

Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Our fin edges are folded for increased stability and heat disbursement properties.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Folded fin edges increase stability and heat disbursement properties.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

Product Attributes

Transmission Oil Cooler Distance between Fittings	18 IN
Outlet Diameter	2.25 IN
Core Width	26 5/8 IN
Tank Material	Plastic
Inlet Diameter	2 IN
Core Thickness	1.25 IN
Core Row Quantity	1
Core Height	35 7/8 IN
Core Material	Aluminum
Engine Oil Cooler Included	No
Inlet Header Length	26 13/16 IN
Outlet Header Length	26.812 IN
Outlet Header Width	77.8 MM
Inlet Header Width	77.8 MM
Inlet Diameter	50.8 mm
Inlet Header Width	77.774 mm
Core Thickness	31.75 MM
Inlet Header Length	681.024 mm
Core Height	911.2 MM
Inlet Header Length	681 MM
Frame Included	No
Outlet Header Width	77.774 mm
Inlet Header Width	3 1/16 IN
Outlet Diameter	57.15 MM
Core Thickness	32 MM
Outlet Header Length	681.024 mm
Transmission Oil Cooler Distance between Fittings	457.2 MM
Transmission Oil Cooler Included	Yes
Outlet Header Width	3 1/16 IN
Inlet Location	Upper Left
Core Width	676.275 MM
Outlet Location	Lower Right
Transmission Oil Cooler Distance between Fittings	457.20 MM
Inlet Diameter	51 MM
Outlet Diameter	57 MM
Core Height	911.225 MM
Core Width	676.3 MM
Outlet Header Length	681.7 MM
Radiator Cap Included	No
Down Flow Or Cross Flow Type	Cross Flow

Additional Information

Country of Origin (Primary)	CN
Warranty Special	12 Months
UPC	06949521784515
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 42-10027 Cross Reference

We have 67 alternatives for the 42-10027 by REACH COOLING:

Fits Vehicles

GMC C7000 Topkick (1991-1992)
GMC C6000 Topkick (1991-1992)
Chevrolet C70 Kodiak (1991-1992)
Chevrolet C60 Kodiak (1991-1992)
