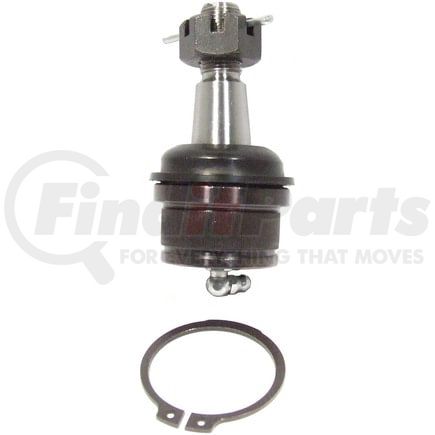

Delphi TC1696 - Ball Joint
$2799
MSRP: $40.83
Save: $12.84
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.008 IN |
| Maximum Outside Diameter | 51.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.625 IN |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 51 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 4.252 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greasable | Yes |
| 4966 | 1.142 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| 9212 | 0.742 IN |
| Stud Tapered End 2 Diameter | 18.85 MM |
| 9213 | 0.913 IN |
| Stud Tapered End 1 Diameter | 23.2 MM |
| Stud Threads Per Inch | 18 |
| Length | 108.00 MM |
| Length | 4.250 IN |
| Stud Thread Diameter | 15.88 MM |
| Height | 108.00 MM |
| Stud Thread Length | 29.01 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604275788 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Ford E-150 Club Wagon (2003-2004)
- Ford E-150 (2003-2004)
- Ford E-150 Econoline Club Wagon (1992-2002)
- Ford E-150 Econoline (1992-2002)
