DELPHI part description

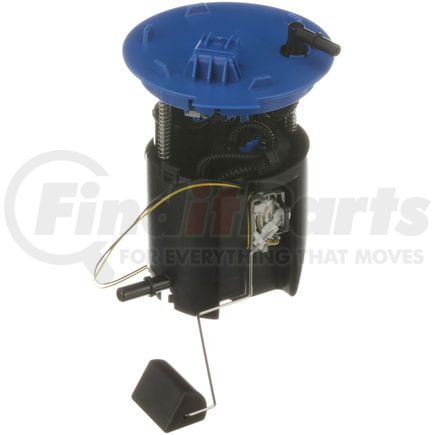

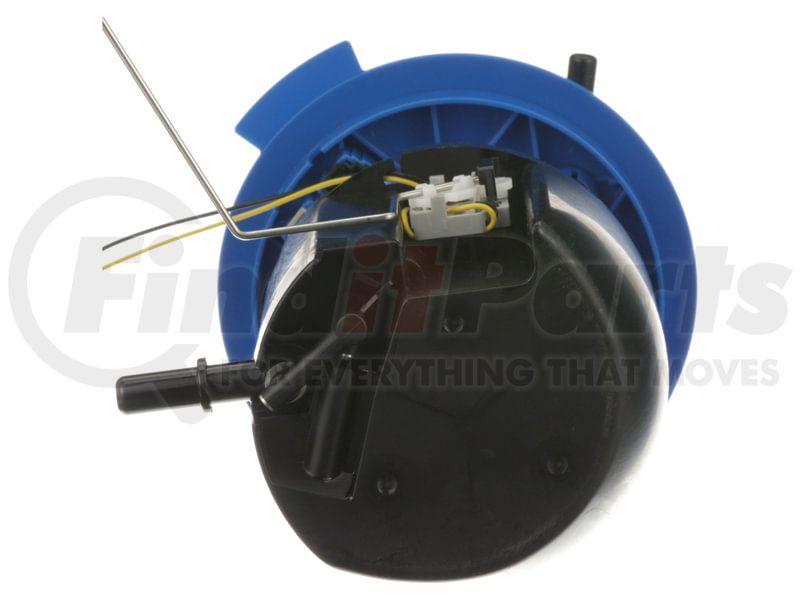

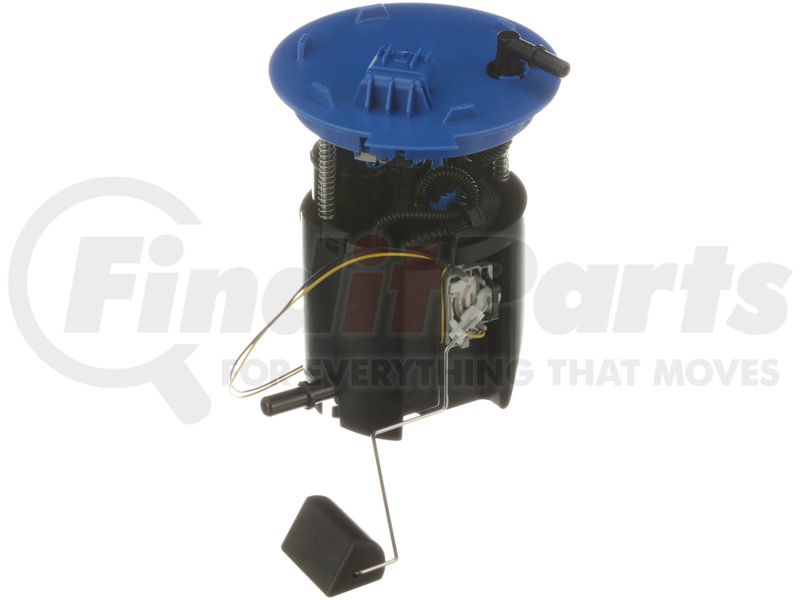

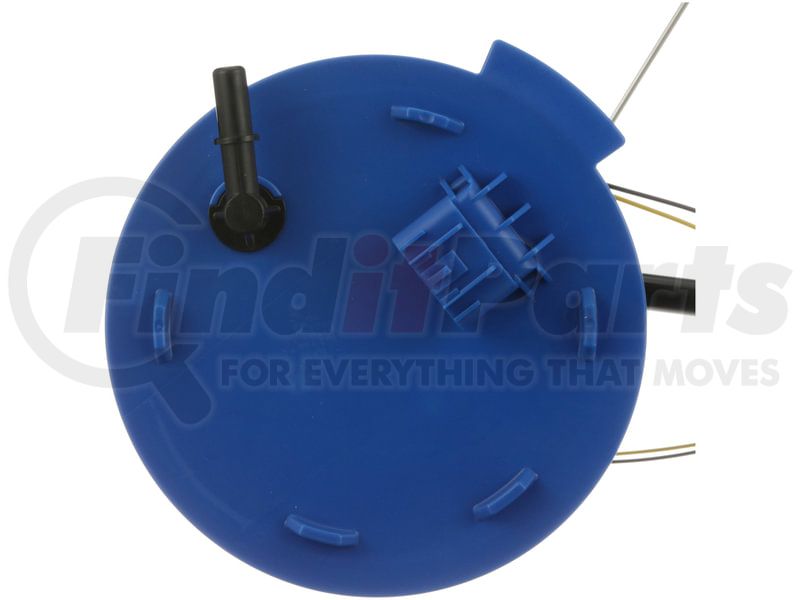

FUEL PUMP MODULE ASSEMBLY

Product Description

Fuel Pump Module Assembly

Product Attributes

Item Grade Standard Replacement
Voltage 12 2H
Fuel Type Gas
Lock Ring Included No
Strainer Included Yes
Inlet Type Strainer
In Tank or External In Tank
Internal Or External Strainer Internal
Pump Type Electric
Fuel Sending Unit Included Yes
Negative Ground No
Outlet Outside Diameter 0.375 IN
Regulator Included Yes
Maximum Pressure 76 PS
Terminal Type Blade
Mounting Hardware Included No
Grade Type Premium
Connector Quantity 2
Connector Shape Rectangle
Gasket Or Seal Included Yes
Housing Material Plastic
Installation Warnings No
Terminal Quantity 4
Connector Gender Female
Terminal Gender Male
Outlet Type Quick Connect
Outlet Quantity 1
Fuel Filter Included Yes
Resistance Ohms Empty 250 82
Resistance Ohms Full 40 82
Gasket Or Seal Material Nitrile Rubber
Minimum Pressure 55 PS
Wire Harness Included No
Pump Design Turbine
Average Current Draw 24 68
Fuel Tank Pressure Sensor Included No
Average Flow Rating 35 GPH

Additional Information

Harmonized Tariff Code (HTS) 8421230000
Warranty Special Limited Lifetime
Warranty Special UOM LF
Harmonized Tariff Code (Schedule B) 8421230000
Country of Origin (Primary) TH
UPC 00689604386613
VMRS Code 044003258
UNSPSC 25172409

Part Interchanges

Fits Vehicles

  • Cadillac CTS (2009-2015)

Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
