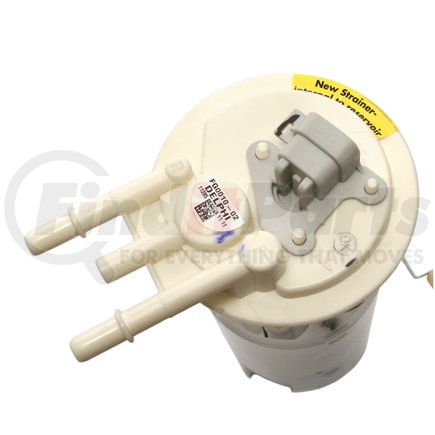

Delphi FG0010 - Fuel Pump Module Assembly
$20149
MSRP: $486.84
Save: $285.35
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Fuel Pump Module Assembly
Product Attributes
| Fuel Level Sender Assembly Included | Yes |
| Vapor Pressure Sensor | No |
| System Pressure | 44 psi |
| Item Grade | Standard Replacement |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 13 2H |
| Fuel Type | Gas |
| Regulator Included | No |
| Maximum Pressure | 109 PS |
| Terminal Type | Pin |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 5 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 3 |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 0.1 82 |
| Resistance Ohms Full | 90 82 |
| Internal Or External Strainer | External |
| Pump Type | Electric |
| Average Current Draw | 7 68 |
| Average Flow Rating | 20 GPH |
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Mounting Hardware Included | No |
| Wire Quantity | 4 |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Trapezoid |
| Housing Material | Plastic |
| Installation Warnings | No |
| Connector Gender | Female |
| Fuel Filter Included | No |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 44 PS |
| Wire Harness Included | Yes |
| Pump Design | Turbine |
| Fuel Tank Pressure Sensor Included | No |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TH |
| UPC | 00689604059470 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
Part Interchanges
- General Motors 19179982
- General Motors 25029764
- General Motors 25029982
- General Motors 25029996
- General Motors 25363938
- 9535008
- Bosch 67323
- Carter P74747M
- 43902
- 43911
- 43912
- ACDelco MU1786
- Magneti Marelli 1AMFP00127
- Airtex E3913M
- Spectra Premium SP49911M
- Kem EFP911M
- Master Parts Division E3913M
- BorgWarner P367M
- Niehoff P367M
- DENSO Auto Parts 953-0004
- DENSO Auto Parts 953-5008
- Spectra Premium SP137
- Carter P74133
- ACDelco 43-902
- ACDelco 43-911
- ACDelco 43-912
- AutoZone DFG0010
- General Motors 19332081
- General Motors 19369912
- Precision Fuel A30069
- USEP3913M
- C0325M
DELPHI FG0010 Cross Reference
We have 2 alternatives for the FG0010 by DELPHI:
Fits Vehicles
- Cadillac Seville (1994-1996)
- Cadillac Eldorado (1994-1996)
- Cadillac DeVille (1994-1996)
