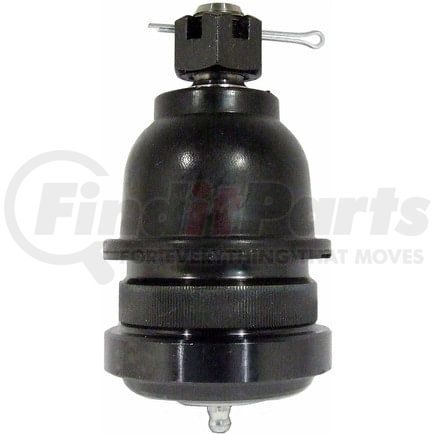

Delphi TC1637 - Ball Joint
$2449
MSRP: $31.35
Save: $6.86
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.500 IN |
| Maximum Outside Diameter | 63.50 MM |
| Color | Gray |
| Stud Thread Diameter | 0.625 IN |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 63.5 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.685 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greasable | Yes |
| 4966 | 0.886 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| 9212 | 0.672 IN |
| Stud Tapered End 2 Diameter | 17.08 MM |
| 9213 | 0.827 IN |
| Stud Tapered End 1 Diameter | 21 MM |
| Stud Threads Per Inch | 18 |
| Length | 119.00 MM |
| Length | 4.690 IN |
| Stud Thread Diameter | 15.88 MM |
| Height | 119.00 MM |
| Stud Thread Length | 22.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604277072 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Pontiac Parisienne (1971-1974, 1976)
- Chevrolet Townsman (1971-1972)
- Chevrolet Kingswood (1971-1972)
- Chevrolet Brookwood (1971-1972)
- Chevrolet Biscayne (1971-1972)
- Buick Centurion (1971-1973)
- Pontiac Grand Safari (1971-1976)
- Pontiac Grandville (1971-1975)
- Pontiac Catalina (1971-1976)
- Pontiac Bonneville (1971-1976)
- Oldsmobile Delta 88 (1971-1976)
- Oldsmobile Custom Cruiser (1971-1976)
- Oldsmobile 98 (1971-1976)
- GMC Safari (1985-2005)
- Chevrolet Impala (1971-1976)
- Chevrolet Caprice (1971-1996)
- Chevrolet Bel Air (1971-1975)
- Chevrolet Astro (1985-2005)
- Cadillac Brougham (1987-1992)
- Cadillac Fleetwood (1977-1984)
- Cadillac DeVille (1977-1984)
- Cadillac Commercial Chassis (1977-1982, 1992)
- Buick Riviera (1971-1976)
- Buick LeSabre (1971-1976)
- Buick Estate Wagon (1971-1976)
- Buick Electra (1971-1976)
