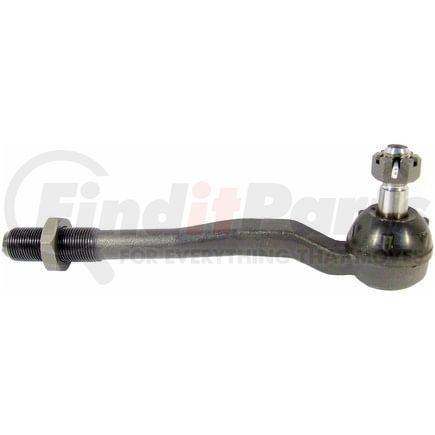

Name: Delphi TA2412 Tie Rod End
SKU: ta2412
Price: 25.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Right Outer
Item Grade	Standard Replacement
Color	Gray
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	43 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.787 IN
End 2 Thread Diameter	20.00 MM
Height	78.20 MM
Housing Material	Steel
36	0.669 IN
Tube Diameter	17.00 MM
Adjustable	No
Greasable	No
Weight	1.88 lb
Cone Outside Diameter	16.00 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length Stud Center to End	8.661 IN
Length Stud Center to End	220.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.551 IN
End 1 Thread Diameter	14.00 MM
Shank Length	16.00 MM
Stud Length	16.00 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.630 IN
Stud Length	0.630 IN
662	0.630 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604248089
VMRS Code	015004019
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Toyota 4Runner (1996-2002)
