(888) 312-8812 Login SignupRAYBESTOS 66824FZN Raybestos Element3 Coated Brake Rotor
$9099
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
RAYBESTOS 66824FZN Part Description
Manufacturer
Product Description

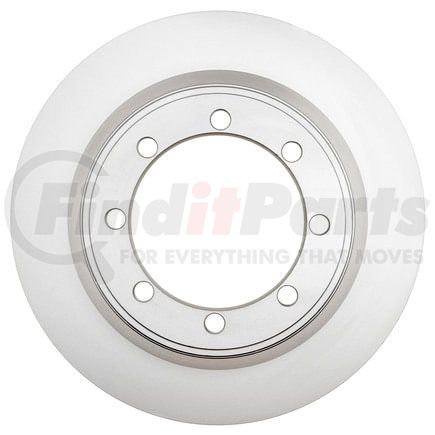

Raybestos Element3 Coated Brake Rotor
Application Summary
2004-1999 Ford F-350 Super Duty Rear
Features & Benefits
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology for long lasting rust prevention.
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 66824FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.73 IN |
| Center Hole Diameter | 120.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.591 IN |
| Mounting Bolt Hole Circle Diameter | 142 MM |
| Mounting Bolt Hole Diameter | 0.511 IN |
| Mounting Bolt Hole Diameter | 13 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.18 IN |
| Nominal Thickness | 29.95 MM |
| Outside Diameter | 12.835 IN |
| Outside Diameter | 326 MM |
| Overall Height | 4.44 IN |
| Overall Height | 112.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213144864 |
RAYBESTOS 66824FZN Cross References
RAYBESTOS 66824FZN Fits Vehicles
- Ford F-350 Super Duty (1999-2004)
