CENTRIC 320.65070F Part Description
Manufacturer
Product Description

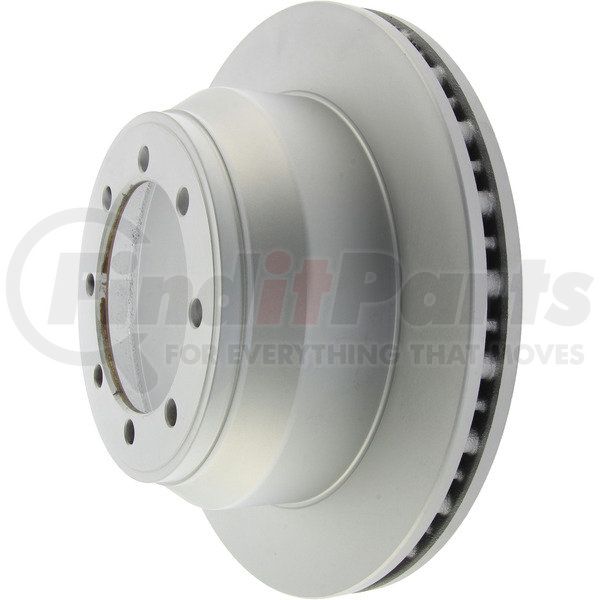

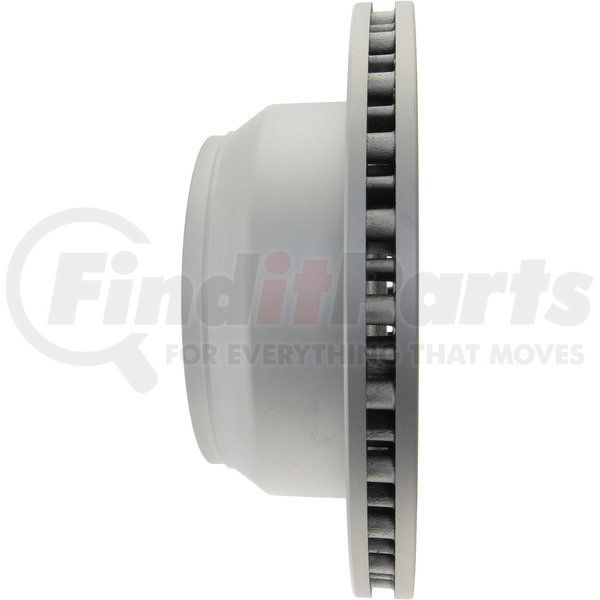

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.65070F Specifications
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Kgs | 11.360 |
| Disc Mounting [cntrc] | Floating / DIH |
| Vane Style [cntrc] | Pillar |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Lbs | 25.000 |
| Max Pb Drum Dia [cntrc] In | 8.157 |
| Max Pb Drum Dia [cntrc] Mm | 207.200 |
| Discard Thickness | 28.000 MM |
| Discard Thickness | 1.102 IN |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 112.800 MM |
| Overall Height | 4.441 IN |
| Outside Diameter | 326.000 MM |
| Outside Diameter | 12.835 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 8.114 IN |
| Nominal Drum Diameter | 206.100 MM |
| Bearings Included | No |
| Center Hole Diameter | 4.728 IN |
| Center Hole Diameter | 120.100 MM |
| Mounting Bolt Hole Circle Diameter | 142.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.591 IN |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 12.900 MM |
| Stud/Lug Hole Diameter | 0.508 IN |
Additional Information
| Country of Origin (Primary) | CN |
| NAFTA Preference Criterion Code | B |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 889590392692 |
CENTRIC 320.65070F Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 66824, 66824FZN, 66824R |
CENTRIC 320.65070F Fits Vehicles
- Ford F-350 Super Duty (1999-2004)
CENTRIC 320.65070F Cross References
We have 3 alternatives for the 320.65070F by CENTRIC:
