MONROE part description

Product Description

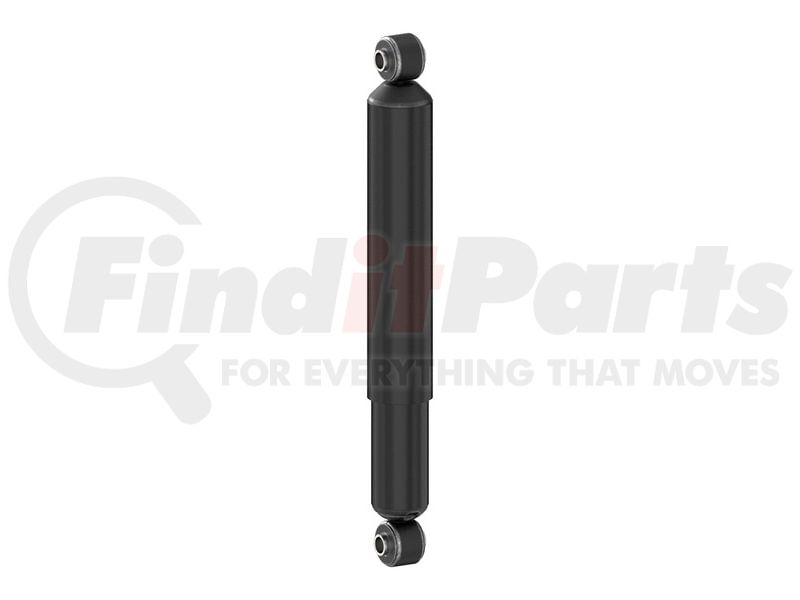

Reflex Suspension Shock Absorber

Features & Benefits

  • IMPROVES STABILITY -- ASD (Acceleration Sensitive Damping) valving technology adjusts to impacts, reducing roll and dive for vehicles with a higher center of gravity
  • EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
  • CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to run cooler
  • CONTROL AND DURABILITY -- Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
  • IMPROVES PERFORMANCE -- Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration
  • BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
  • BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee

Product Attributes

9791 LS92
9789 LS92
Dust Shield Included Yes
9783 No
9908 Yes
9792 No
Part Description Shock Absorber
Compressed Length 17.18 IN
Extended Length 27.69 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1.11/16" Sleeve OAL
Parts Pack(s) None
Travel Length 10.51 in
Upper Mount Type Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 42.86MM Sleeve OAL
Compressed Length 436.4 MM
Extended Length 703.3 MM
Travel Length 267 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop

Additional Information

MSDS Sheet Number 1164
Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598155962
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

Fits Vehicles

  • Ram 3500 (2013-2024)
